Mark Levinson 383 Referentie Integrated USA Amp topstaat

De Mark Levinson 383 is de eerste zware geintegreerde versterker van het merk. De Mark Levinson 383 levert een gezonde 2 x 100 watt aan 8 ohm en 2 x 200 watt aan 4 ohm. Geschikt voor zo’n beetje alle luidsprekers op de wereldmarkt. Nu staat Mark Levinson bekend als een zeer eigenzinnig merk, met een geheel eigen klank, en een onberispelijke, zeg maar, perfecte bouwwijze. Gebouwd voor een zeer lang leven. De Mark Levinson 383 is volledig gebalanceerd van ingang tot uitgang, en heeft voldoende ingangen. Klankmatig is de 383 een echte Mark Levinson. Een royale en zeer fijne afbeelding, met een zeer prettige klankbalans. De Mark Levinson klinkt zuiver, zonder glazig te worden. De Bassweergave is erg goed, deze gaat zeer diep en is fraai gecontroleerd. Niet voor niet is de Mark Levinson een van de meest gewilde geïntegreerde versterkers op de markt. Deze Mark Levinson 383 verkeert in een uitmuntende staat

Description: Solid-state integrated stereo amplifier.
Preamplifier section: Line-level inputs: two pairs balanced (XLR), three pairs single-ended (RCA, optional). Outputs: one pair record outputs (RCA), one IEC AC mains receptacle, one ground terminal. Controller connections: three 3.5mm mini-jacks (IR input, DC trigger out/in), one Mark Levinson Link communications connector, one 6-pin RJ-11 RS-232 port, two 8-pin RJ-45 control ports (PHASTLink-compatible). Voltage gain: 0, 6, 12, or 18dB in line stage (26.9dB in amplifier stage). Volume control range: 72.2dB. Gain resolution: 0.1dB steps above 38.5 in display (-34.7dB). Input overload: 4V on XLR, 2V on RCA (gain set to +12dB); 16V on XLR, 8V on RCA (gain set to 0dB). Frequency response: 10Hz-40kHz, ±1.0dB. Input impedance: 100k ohms. THD+noise: ±0.3%. Mains voltage: 100V, 120V, 220V, 230V, or 240VAC at 50 or 60Hz (factory set). Power consumption: typically 100W at standby, 200W at idle, 1200W at 4 ohms at rated output.
Amplifier section: Rated output power: 20Hz-20kHz, less than 0.3% THD (FTC): 100Wpc into 8 ohms (20dBW), 200W minimum continuous into 4 ohms (20dBW). Frequency response: 20Hz-20kHz, ±0.1dB. Output impedance: ±0.05 ohms, 20Hz-20kHz. Damping factor: greater than 800, 20Hz-20kHz into 8 ohms. Speaker connections: one pair Madrigal-designed speaker binding posts.
Dimensions: 446mm W by 166mm H by 495.3mm D.
Shipping weight: 36.6kg

As you probably know an integrated amplifier is essentially two units in the same box. A preamp and an amplifier. It allows you to get very similar performance as separates, but at a quite a cost reduction, since both the preamp and the amplifier will share the power supply and chassis and a lot of the circuity. So it's a great way to get into a Mark Levinson piece without spending $10,000.


This particular integrated is rated at 100W per channel, but on our test bench we saw about 10-15% higher than that figure with no trouble.


It has some pretty nice features including the ability to name the inputs. There is no phono section inside this unit, so you will need a separate phono preamp if you want to connect a turntable.

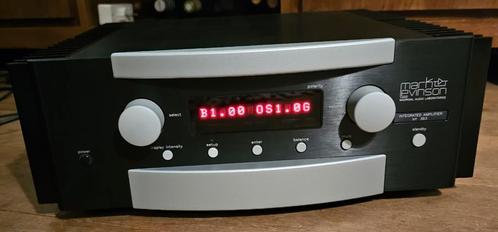

Continuing with the controls, there is an intensity control for dimming the display so it doesn't keep you up at night, and a setup button that lets you name inputs and gain and all sorts of parameters. There's a balance control, volume attenuator for combined left and right channels, and a mute button.


It has a power button for its main power supply and then a separate standby button to put it into a sort of sleep mode. That way the critical audio circuity stays engaged and warmed up while turning off the outputs and the display.


On the back it's got some really nice handles which are most helpful as this weighs about 80 lbs.


For speaker connectors it has pretty unique wing nuts that I've only seen on Mark Levinson gear. Really nice and easy to put some good torque on spade lug connectors. If you want to use bananas, you'll have to use an adapter, so I strongly suggest a speaker cable with a spade lug.


Moving down we see two sets of balanced inputs which is generous for a preamp of this price range, and then three additional single ended RCA inputs for connecting other equipment like a phono preamp, CD player, or maybe a Sonos connect. There's some communication connections for a home automation system like Savant or Crestron, and some control ports for other Mark Levinson gear (possibly a DAC or CD player). Plus triggers for turning things on and off remotely and an infrared input in case you want to put this away in a cabinet

In uitstekende staat te koop voor 2850,-inclusief 3 maanden garantie

Vooraf te beluisteren

Inruil (uitsluitende courante) audio bespreekbaar
