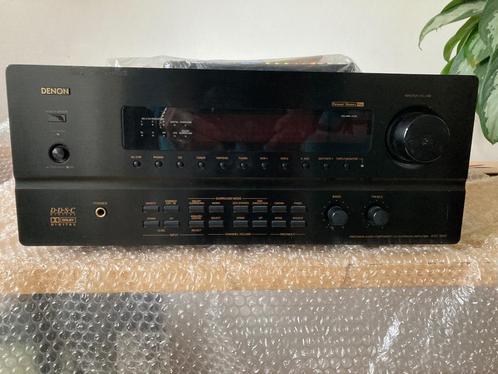

Denon AVC-3800 Surround Ampliffier + Remote control

Denon AVC-3800 Surround Ampliffier
Met nieuwe remote control.

Bieden vanaf € 95.

Type
AV amplifier
Power Amplifier Unit
Rated output:
                 Front (when 2 ch is driven)
                 125 + 125W (8 ω, 1 khz, 0.7% THD)
                 110W + 110W (8 Ω, 20 Hz to 20 kHz, THD 0.05%)
                  5-channel drive
                  90Wx5 (8 Ω, 1 kHz, 0.7% THD)

Dynamic Power:
                          140Wx2 (8 Ω)
                           235Wx2 (4 Ω)
                           280Wx2 (2 Ω)

Output terminal:
                                    Front Center
                          AORb : 8 Ω ~ 16 Ω
                          A + B : 16 Ω
                          Biwiring : 8 Ω ~ 16 Ω
                          Surround : 8 Ω ~ 16 Ω

Preamplifier Section:
Input Sensitivity / Impedance  200mV/47k Ω
Frequency characteristic 10 Hz ~ 100 kHz + 0 -3dB (Direct Mode)
Signal-to-noise ratio 105 dB (in direct mode)
Total harmonic distortion factor  0.005% (20 Hz to 20 kHz, Direct Mode)
Rated output  1.2V
Maximum power output  8V
Maximum headphone output  284 mW (8 Ω)
Digital Section (D/A Output)
Rated output. 2 v (at 0 dB playback)
Total harmonic distortion factor 0.005%
Signal-to-noise ratio. 102dB
Dynamic range. 96dB
Digital input format  Digital audio interface
Phono Equalizer Section (Phono-Rec out)
Input sensitivity. 2.5mV
RIAA deviation. 20 Hz to 20 kHz ± 1 dB
Signal-to-noise ratio. 74 dB (JIS-A, at 5 mV input)
Distortion factor. 0.03% (at 1 khz, 3 v output)
Rated output. 150mV
Maximum power output. 8V


I/O Level / Impedance. Standard Image Terminal : 1Vp-p/75 Ω
             S terminal
             Y (luminance) signal : 1Vp-p/75 Ω
             C (Color) Signal : 0.286Vp-p/75 Ω

Frequency characteristic
                            Standard Video Terminal : 5 hz ~ 10 mhz + 0 -3dB
                            S Terminal : 5 Hz ~ 10 MHz + 0 -3dB

Power supply voltage. 100 VAC, 50Hz/60Hz
Power consumption. 370W
Maximum external dimensions
                                        Width 434x Height 181x Depth 486 mm
                                        Weight. 21.5kg
Included : Wireless Remote Control RC-820
  Dry battery     DC3V, R6P (AA Type)
                         Uses 2 dry batteries

External dimensions:
                            Width 70x Height 215x Depth 19 mm
                            Weight. 180g (including dry batteries)
