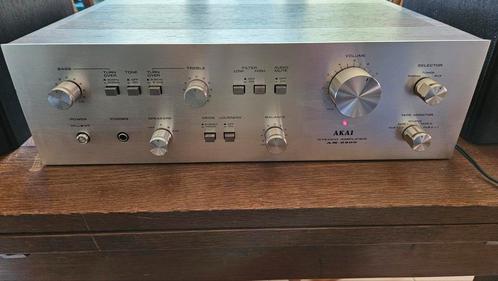

Akai AM-2400

Vintage untouched!

Lijkt allemaal te werken.
Zelf TLC insteken.
Op verzoek en tegen betaling beurt.

Bieden naar waarde a.u.b.
Geen reactie = te laag bod.
Op vragen naar prijs geen reactie.

Verzenden kosten & risico koper.

• * *

Specifications

Manufacturer: Akai
Model: AM-2400
Type: Integrated amplifier
Years of manufacture: 1977 - 1979
Made in: Japan
Color: Silver or black
Dimensions (W/H/D): 440 x 141 x 331 mm
Weight: 9.1 kg
Original price approx.: 648 DM

Connections

Inputs:
Phono MM: 3 mV / 47 kOhm
Tuner: 150mV / 100kOhm

AUX: 150mV / 100kOhm
Tape Play 1, 2: 150mV / 100kOhm
Tape Play DIN: 150mV / 100kOhm
Outputs:
Tape Rec 1, 2: 150mV / 100kOhm
Tape Rec DIN: 30mV / 180kOhm
Headphones:
2 pairs of speakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 40 W (20Hz - 20Khz)
4 Ohm:
Dynamic power
8 Ohm:
4 Ohm:
Frequency response:
Phono MM: 30 Hz - 15 kHz (± 0.5 dB).
High Level: 7 Hz - 70 kHz (+ 0 dB / - 1 dB)
Distortion factor: < 0.15 %
Dämpfungsfaktor: 60 bei 8 Ohm
Signalrauschabstand:
Phono MM: 75 dB
High Level: 95 dB
Kanaltrennung Phono: >55 dB
Tone control:
Bass: ± 10 dB at
Tipping frequency 200 Hz, 400 Hz
Tweeter: ± 10 dB at 10 kHz

Cut-off frequency 6 kHz, 10 kHz
Loudness: + 10 dB at 100 Hz, + 6 dB at 6 kHz
High Filter: - 6 dB at 10 kHz
Bass Filter: - 6 dB at 60 Hz
Muting: 0 dB, - 20 dB

Special Features

Tilt frequencies for bass and tweeter
