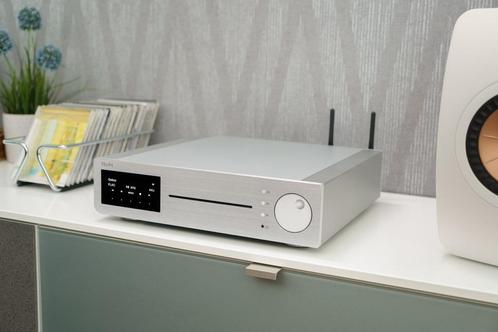

AVM Inspiration CS 2.3 NIEUW zomer Aanbieding!

Nieuw in gesloten doos. Wij zijn AVM dealer, volledige dealer garantie. Wij verkopen onze overstock; Normale prijs : € 5.990,- nu voor € 3.990,-
slechts 2 modellen voor deze prijs!

Power amplifier
Gain factor 30
Distortion factor < 0.005%
Signal-to-noise ratio > 95dB
Input sensitivity 275 mV
Frequency response (-3dB) < 5Hz to > 80kHz
Output power (1% THD, 4 Ohm, 2 Channel) 2 x 140W

Preamplifier (Pre-Out)
Input impedance 3.4 k?
Output impedance 470 ?
Gain factor 1
Distortion factor < 0.001%
Signal-to-noise ratio > 100dB
Frequency response (-3dB) < 5Hz to > 80kHz
Crosstalk attenuation (channels) > 95dB
Crosstalk attenuation (inputs) > 85dB
Input headroom (1% THD) 3.5 V
Output headroom (1% THD) 3V

Preamplifier (Line-Out)
Output impedance 47 ?
Gain factor 1
Distortion factor < 0.001%
Signal-to-noise ratio > 100dB
Output headroom (1% THD) 3.5 V

Preamplifier (Headphone-Out)
Output impedance 80 ?
Gain factor 4
Distortion factor < 0.001%
Signal-to-noise ratio > 100dB
Output headroom (1% THD) 4.5 V

Preamplifier (Phono)
RIAA equalization < 0.2dB
Gain MM 40dB
Signal-to-noise ratio MM > 83dB(A)
Gain MC 60dB
Signal-to-noise ratio MC > 74dB(A)
Input headroom MM (1% THD) 30 mV
Input headroom MC (1% THD) 3 mV

CD-Player (only CS 2.3)
Playable formats CD Audio, CDR (according to Red-Book standard)
Frequency response CD < 20 – 20 kHz

Network
LAN connection (hot-plugging capable) 100Mbit/s
Supported WLAN/WiFi standards 2.4 / 5 GHz 802.11a/b/g/n/ac
Number of antennas 2
WPS yes

Streaming
Max. sampling rates DSD256, 32Bit/384kHz PCM
Streaming services AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio
Supported file formats WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF

Bluetooth
Bluetooth standard 5.0 LE
Supported Bluetooth profiles AVRCP 1.5 AD2P

USB Input (Rear)
USB standard USB 2.0
Max. current 500 mA
Supported formats FAT16, FAT 32, NTFS
WARNING: The USB input is exclusively for hard drives and USB sticks!

Digital inputs (S/P-DIF/Coaxial)
Max. sampling/bit rate (OPTO) 96 kHz / 24 Bit
Deemphasis (OPTO) Yes, automatic
Max. sampling/bit rate (COAX) 192 kHz / 24 Bit
Min. signal level [Vpp] at 195kHz (COAX) > 150 mVpp
Input impedance (COAX) 75 ?
Deemphasis (OPTO) Yes, automatic
Max. sampling/bit rate (ARC) 192 kHz / 24 Bit
Input impedance 100 ?
NOTE: The maximum cable length for using digital inputs is 3 meters.

Digital outputs (S/P-DIF/Coaxial)
Max. sampling/bit rate (OPTO) 96 kHz / 24 Bit
Max. sampling/bit rate (COAX) 192 kHz / 24 Bit
Output impedance (COAX) 75 ?
NOTE: The maximum cable length for using digital outputs is 3 meters.

Power consumption
Standby < 0.5 Watt
Extended standby (network connection) < 2 Watt
Idle < 16 Watt
Fuse used T 3.15A H

General
Mains voltage and frequency 100 – 240V / 50 – 60Hz
Operating altitude Up to 2000m
Allowed temperature range: 20 – 30°C
Weight 7.1 kg
Dimensions (WxHxD) 340 x 92 x 325
Warranty 2 years (+ 2 years with online registration*)
