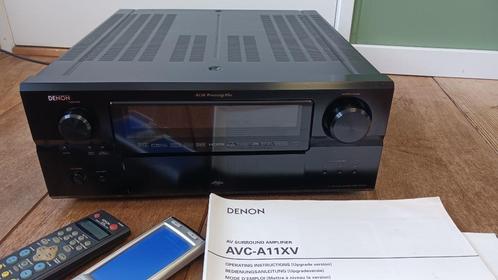

Denon AVC-A11XV surround amplifier | 7-channel

Super nette Denon surround versterker voor serieus surround. Nauwelijks te tillen.
Maar liefst 140 Watt per kanaal. In hele nette staat, zonder gebreken. Inclusief afstandbedieningen en boekjes.
Nieuwprijs was ca. 3.500 euro!

Hij kan hier beluisterd worden bij het ophalen.

General

• Manufacturer: Denon
• Model: AVC-A11XV
• Year of manufacture: from 06/2005
• Manufactured in:
• Color:
• Remote control:
• Power consumption:
• Dimensions: 434 x 178 x 500 mm (WxHxD).
• Weight: 23,6 kg
• Original price approx.: 3499 €

Connections

• Digital inputs (optical/coaxial): 5 (incl. 1xFront) / 3
• Digital outputs (optical/coaxial): 3 / -
• DENON LINK (3rd, incl. SACD)
• IEEE1394 input (digital audio): 2
• Phono input (MM)
• Audio inputs: 12 (incl. phono and front) all inputs can be adjusted in input sensitivity by ± 12dB
• Audio outputs: 4
• Multi-channel input (100 kHz, DVD-Audio/SACD compatible): 8-channel
• Preamplifier outputs: L/C/R/SL/SR/SBL/SBR/Sub, Zone 2: L/R, Zone 3: L/R
• Video Inputs (Composite/S-Video): 8 (incl. 1xFront) / 8 (incl. 1xFront)
• Video outputs (composite/S-video): 3+monitor / 3+monitor
• Video inputs component: 3, bandwidth: 5 Hz-100 MHz
• Video Outputs Component: 2
• Inputs HDMI / DVI-D: 3 / 1 (HDMI 1.1 with 6ch DVD-Audio support)
• Outputs HDMI: 1
• Front AV Input: Audio (L/R), Video (Composite/S-Video), Digital (Optical)
• Gold-plated connection terminals
• Power jack (switched): 1
• +12 trigger output: 3 (3.5 mm jack) differentiable by zone/source/surround mode
• IEC socket for power supply
• Headphone output (6.3 mm jack)
• Ethernet network connection

Specifications

• Power amplifier:
• Power amplifier 7-channel power amplifier
• Power: 7 x 195 W; 6 Ohm, 1kHz, 0.7% Distortion
• THX certified: THX Ultra 2
• power amplifier construction: discrete, High Current Transistor
• Sophisticated aluminum profile heat sink (sound-optimized, no annoying fan)
• Bandwidth: 10 Hz - 100 kHz

power supply:

• Ring core transformer (for power amplifier and driver).
• EI transformer with shield winding (x2 for audio/video stages, plus one additional transformer)
• Double rectifier in parallel connection

• Power supply:
• Ring core transformer (for power stages and drivers).

EI transformer with shield winding (x2 for audio/video stages, plus one additional transformer)

• Double rectifier in parallel circuit

• DSP:
• DSP: 3 x 32-bit advanced floating point DSP, Texas Instruments TMS320DA610.
• ALPHA Processor: AL24 Processing Plus for all channels

Cinema Equalizer DSP Programs: 10

• Multi-channel stereo: 5/6/7-channel stereo

• Digital Section:
• D.D.S.C. Circuitry
• D/A converter: 24 bit / 192 kHz (Burr Brown PCM1791A x4), differential arrangement
• A/D Converter: 24 Bit / 192 kHz (Burr Brown PCM1804)
• Digital Interface Receiver (DIR): 24 bit / 192 kHz.

• Auto Setup:
• Detection of connected speakers

Loudspeaker Phase Check Speaker Size Detection (Large/Small) Detection of optimum crossover frequency (each LS individually) Detection of loudspeaker distance (0.01 metre steps) Level setting

• Precision measurement microphone: DM-S305 (included), manufactured by Audio-Technica massive construction for resonance suppression
• Proven linear frequency response 6 m connection cable, mounts for standard camera tripods

• Auto Room EQ:
• Features: Audyssey MultEQ XT (FIR filter technology).
• Measurement Algorithm: Audyssey MultEQ XT Measurement Sequence
• Optimization/EQ curves: Audyssey: MultEQ XT algorithm (equalization of the defined listening zone)

Memory: Audyssey: MultEQ XT algorithm (equalization of the defined listening zone), flat: flat over the entire frequency response; front: surround LS are matched to the front speakers; all curves are determined at once during calibration! Selection of EQ curves without re-calibration of the system: (Audyssey, Flat, Front, Manual) Manual adjustable Graphic-EQ: 9 Band (each LS individually) Direct mode with/without EQ EQ curves can be assigned to surround modes Copy function of measured EQ curves into the manual Graphic-EQ

• Auto Room EQ with Audyssey MultEQ XT
• Simultaneous correction of room-dependent frequency responses for multiple positions (up to 8 positions)

• Consideration of frequency and time domain when correcting room acoustics Filter technology: Finite Impulse Response (FIR) digital filter
• Stepless frequency correction (20 Hz - 20 kHz)
• Video processing

Video A/D converter: 10-bit (ADV7403) Video D/A converter: 216 MHz / 12-bit (ADV7320)
Sound Formats

• Dolby Digital
• Dolby Digital EX
• Dolby Pro Logic II (all setting options incl. Pro Logic I emulation)
• 96 kHz Processing (analog/PCM)
• Dolby Pro Logic IIx (Cinema, Music with setting options, Game) also applicable to DTS 5.1/6.1 sources; 96 kHz processing (analogue/PCM)
• Dolby Headphone
• DTS
• DTS-ES Discrete
• Matrix 6.1
• DTS Neo:6 Cinema / Music (Music with Setting Option)
• 96 kHz Processing (analog/PCM)
• DTS 96/24
• THX Playback Modes: THX with 5.1 Sources, THX with Dolby Surround I+II, THX with 6.1 Matrix Sources, THX with DTS-ES Discrete 6.1, THX Ultra2 Cinema/Music
• HDCD Decoder

Special Features

• Personal Memory Plus / Auto Surround
• Dimmer: 4 levels (light, medium, dark ,off)
• Pure Direct mode (turn off v. Video,Digital,FL)
• Direct mode
• Tone Defeat
• "Variable Gain"-LS control (0,5 dB steps, incl. setup)
• Adjustable muting level (-20, -40, -oo dB)
• chassis construction for optimal sonic performance
• stringently selected components
• independent delay correction: L/C/R/SL-A/SR-A/SBL/SBR/SL-B/SR-B/Sub
• bass management frequency: 40/60/80/90/100/110/120/150/200/250 Hz
• Slope TP/HP: -24 dB/oct/ -12 dB/oct; crossover frequency individually adjustable for: L/R, C, SL-A/SR-A, SL-B/SR-B, SBL/SBR, LFE.
• Front speaker A/B (configuration possible)
• Surround speakers A/B (configuration possible)
• Speaker screw terminals (also for banana plugs): all speaker terminals (gold-plated)
• Audio delay function (Lip Sync): 0-200 ms
• Recording selector switch
• convenient on-screen menu (also on HDMI and colour component output)
• two-line FL display (incl. icon display for channel number of input and output configuration)
• Renaming of inputs
• Video Select function
• Adjustment of input levels of analog inputs (all individually, ±12 dB)
• Video conversion: Video -> S-Video, Video/S-Video -> Component, S-Video -> Video
• HDMI video conversion: Video, S-Video ->, Component 480i/576i ->, Component 480p/576p ->, Component 720p ->, Component 1080i ->, HDMI 480i/576i, HDMI 480p/576p, HDMI 720p, HDMI 1080i
• digital video conversion: 3D Y/C Separation, TBC Time Base Corrector
• Video Conversion: Component 480i/576i -> Video/S-Video
• Remote control: pre-programmed, adaptive, button illumination, macro function, "User Mode" memory: 3
