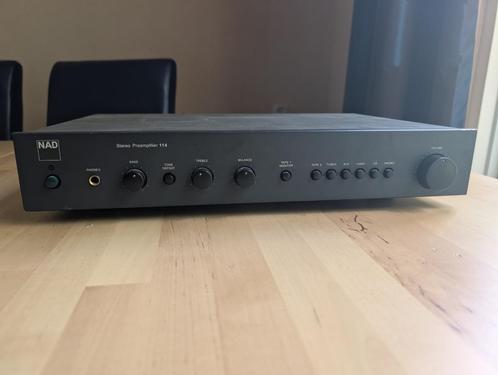

• Manufacturer: NAD
• Model: 114
• Type: Preamplifier
• Years of manufacture: 1996 - 1998
• Color: Black
• Power consumption: 17 W
• Dimensions (WxHxD): 435 x 80 x 280 mm
• Weight: 3,7 kg
• Original price approx.: 698 DM

Connections

• 6 high level inputs
• Phono Input

Phono MM/MC selectable Input Impedance (R and C) MM & MC 47K + 200pF Input Sensitivity Reference 0.5V MM 1.5mV MC 1mV Input Overload 20Hz/1KHz/20KHz

• MM 20mV/200mV/1700mV
• MC 1.3mV/13mV/110mV
• MM 76dB Reference 5mV
• MC 76dB Reference 0.5mV

• Line Inputs
• (CD, Video, Aux, Tuner, Tape1, Tape2)
• Input Impedance (R and C): 20 k + 450 pF
• Input sensitivity reference: 0.5 V, 80 mV

• Line Outputs:
• Output Impedance
• Tape: 2 kOhm, max. > 10 V
• Pre Out: 220 Ohm, max. > 12 V

• 2 power amp outputs
• 1 headphone output: > 250 mV / 8 Ohm, > 8 V / 600 Ohm

Technical Data

• RIAA:
• MM ±0.2dB 20Hz - 20KHz
• MC ±0.2dB 50Hz - 20KHz
• -0.5dB at 20Hz
• Signal to noise ratio: 98 dB
• Frequency response: 20 Hz - 20 kHz, + 0.2 dB
• Distortion factor: < 0.02 %
• Tone control:
• Bass: ± 10 dB at 50 Hz
• Treble: ± 7 dB at 10 kHz
• Subsonic Filter: - 3 dB at 10Hz
