Hypex PSC2.400 DSP versterker module 2x400W

Description
PSC2.400

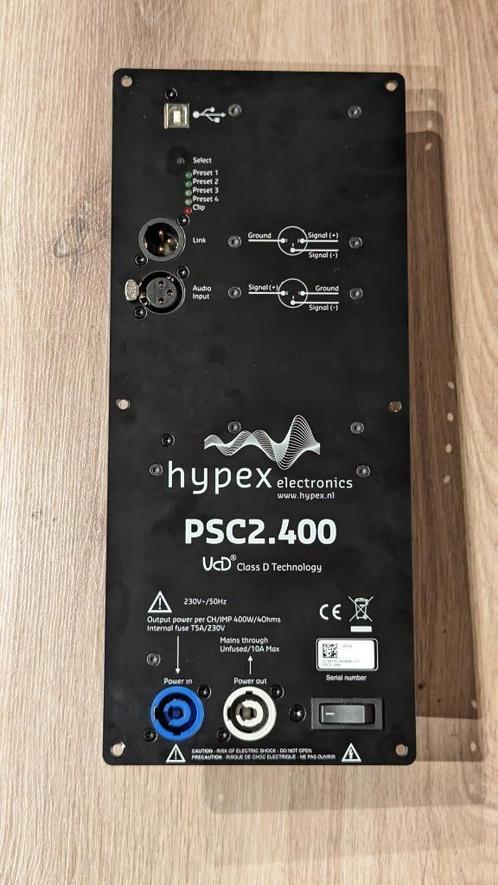

The PSC2.400 is a plate amp for use in powered speaker systems.
Its Digital Signal Processor is fully configurable to suit applications as diverse as 2-way monitor speakers and powered subs. Four programmable presets, Powercon inlet and balanced audio inputs make it the ideal workhorse for professional or high-end domestic speakers.

Specifications

GENERAL FEATURES:

-Two 400W UcD amplifiers
-Powered by SMPS400
-Four programmable presets
-Balanced audio input
-Balanced audio through loop
-Powercon power connection
-Two channel active filtering
-Fully user-configurable DSP filters
-Firmware update by USB

APPLICATIONS:

This module can be used for the following setups:
- Active 2-way speaker
- Powered stereo system
- Active powered sub-woofer

All setups are possible with analogue and optional with the digital audio inputs AES/EBU.

OPTIONAL FEATURES:
- AES/EBU input and output


TECHNICAL DATA:
Supply voltage: 180-264Volt AC/50Hz (switchable to 90-132Volt 60Hz)
Output power: 400W @ 4Ohms per channel or total.

MECHANICAL DATA:
Dimensions: 142mm x 330mm x 55mm (W x H x D)
Weight: 1.1Kg
