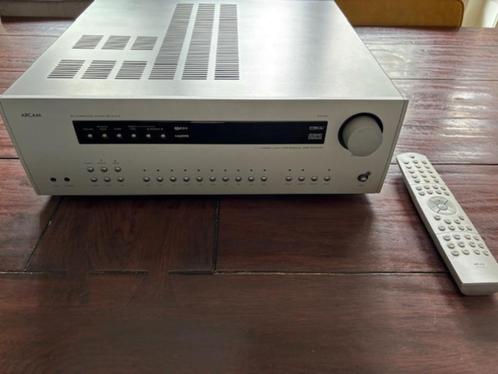

Arcam AVR350 (onderhoud gehad)

Arcam AVR350 - destijds het audiofiele vlaggenschip uit de Diva reeks!

Prachtige versterker met heel veel aansluitpunten (digitaal + analoog, HDMI) - perfect voor een home cinema opstelling of stereo (ook bi-amp). De versterker is zo mooi door de vele instelmogelijkheden. Elke speaker die je aansluit is afzonderlijk te configureren (trebble, bass, delay)
Prachtige volle en strakke Arcam sound

- Is resent gereviseerd door professioneel bedrijf (nieuwe elco's, weerstanden, volledig schoon gemaakt, contact punten gecontroleerd en versterkers opnieuw afgesteld en ingeregeld) - factuur aanwezig 285€. Geen krassen buitenkant. Gaat weer jaren lang mee!

Inclusief:
- Afstandbediening, powercord
- Manual
- Geen doos
Ophalen ivm gewicht(16.2 kg)

Wordt verkocht ivm overstap naar stereo
Te testen en te beluisteren op een set KEF speakers.

Specificaties van de Arcam website:
Analogue Audio
100 WPC continuous power output into 4 or 8 ohms loads (all 7 channels driven at 1kHz)
Stereo output power over 120 WPC into 4 or 8 ohms, 20Hz – 20 kHz
Huge toroidal power transformer and 48,000 microfarads of reservoir capacitors ensure ample power for even the most demanding programme material
6th and 7th channels are assignable to the front left and right for bi-amplifying suitable loudspeakers, or to zone 2 (5.1 speaker setups)
Audiophile quality components for best sound quality, including new OP2134 op-amps, 1% metal film resistors, polypropylene film capacitors, OSCON electrolytic capacitors & double sided, through-plated fibreglass circuit boards
Pre amp outputs for all 7 channels and subwoofer
Multi-channel 7.1 analogue input for DVD-A or SACD sources
Stereo direct mode bypasses and disables all digital processing for 2 channel analogue sources
7 stereo analogue inputs (plus tuner); 3 tape outputs (one a tape loop)
Zone 2 stereo audio, from stereo analogue inputs or internal tuner. Source and volume control independent from main outputs
Built in FM/AM RDS stereo tuner with 30 FM and 16 AM presets

Digital Audio
State of the art Crystal Semiconductors CS49400 DSP, with 24-bit fixed point double precision Dolby Digital and DTS decoding and 32-bit fixed point double precision bass management.
4 layer PCBs
Wolfson Microelectronics 24-bit 192kHz DACs, stereo ADC and precision electronic volume controls
Decodes Dolby Digital EX, Dolby Pro Logic IIx (including full music mode support), DTS 96/24, DTS-ES Discrete and Matrix 6.1, DTS Neo 6
6 Arcam-optimised surround effects modes for 2 channel sources
Adjustable crossover switching from 40 – 130 Hz in 10 Hz steps
Separate sub woofer level settings for film and stereo listening
Bass and treble equalisers, both global and for each of 7 main channels
6 fully assignable digital inputs, 3 co-axial, 3 optical; 1 coaxial & 1 optical output
Assignable global audio delay, adjustable from 0 – 220 milliseconds, to compensate for video processing delays in digital displays or DVD players

Video
2 way HDMI video/audio switcher (pass through audio only)
5 composite and 5 S-video inputs; 3 fully buffered outputs of each type (monitor output and 2 tapes)
3 100MHz bandwidth component video inputs and 1 monitor output (these may alternatively be configured to support RGB, with sync on composite video, for use in European TV systems
On screen display for all menus on all types of interlaced video output
Video up conversion – composite to S-video and vice versa via the monitor outputs; composite and S-video to interlaced component video
Video up conversion to RGB with sync on composite (SCART compatible) for European TV displays. 12V triggers support S-video, RGB and widescreen switching for SCART equipped TVs.
Composite and S-video inputs assignable to “non video” audio inputs such as DVD-A / SAT (for tuner) or CD; high quality (component / RGB) inputs each assignable to any audio input
Zone 2 composite video output, from composite video inputs

Custom Install features
Independent Zone 2 (audio + video), with fixed/variable volume & parental access control to sources
Duplex RS-232 control; also suitable for system software updates
RC-5 remote input jacks for both zones
IR pass through for source components
Full suite of discrete IR RC-5 codes, including separate on / off etc
12 Volt triggers, on/off for zones 1 and 2 and either SCART control (video in RGB mode) or on / off and video signal sensing (component video mode)

General
Supplied with back-lit CR80 learning remote control with support for up to 7 other components
Large, clear 12 character dimmable VFD front panel display
Ground lift switch ; User switchable between 120 and 230 Volt mains supplies
Size – 430mm wide, 433mm deep, 145mm high
Weight 16.2 kg nett, 21.4 kg packed
