T.K

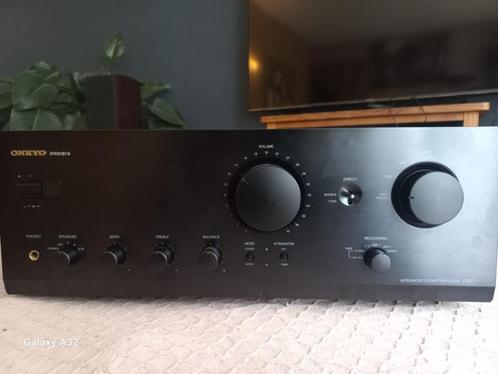

Leuke versterker van Onkyo.

As van volume knop is krom maar werkt perfect (ook op afstandsbediening)

Verder in goede staat.
Condensator nagekeken en allen goed bevonden.

Veel power en zeer zuiver!

Komt met afstandsbediening maar helaas niet de originele.

Wegens gewicht alleen op te halen.

General

• Manufacturer: Onkyo
• Model: A-9711
• Type: Integrated amplifier
• Years of manufacture: 1996 - 1999
• Made in: Japan
• Color: Silver, Black
• Remote control: yes (RC-314S)
• Power consumption:
• Dimensions: 435 x 164 x 428 mm (WxHxD).
• Weight: 14,9 kg
• Original price approx.: 1'000 DM

Connections

• Number of inputs: (Cinch)
• 1x tuner (150 mV / 25 kOhm)

1x CD (150 mV / 25 kOhm)

• 1x Line 1 (150 mV / 25 kOhm)

1x Line 2 (150 mV / 25 kOhm) 1x Tape 1 (150 mV / 25 kOhm)

• 1x Tape 2 (150 mV / 25 kOhm)

• Number of outputs:
• Headphones (6.3mm jack)
• 2x Tape Rec. (150 mV / 3 kOhm)
• 2x pair of loudspeakers

Technical Data

• Continuous power (at distortion factor)
• 8 Ohm: 2x 80 Watt (RMS)
• 4 Ohm: 2x 140 Watt (DIN)

• Dynamic power
• 4 Ohm: 2x 160 Watt
• 2 Ohm: 2x 235 Watt

• Total harmonic distortion: 0.06 %
• Attenuation factor: 120 (at 8 Ohm)
• Frequency response: 2 - 50,000 Hz ±1dB
• Signal-to-noise ratio (CD): 114dB (Direct)/ 110db (Tone)
• Stereo Channel Separation:
• Tone control:
• Bass: +15/-6dB (at 20Hz).
• Treble: ±10dB (at 20kHz)

• Loudness: no
• Subsonic: no
• Mute: yes ( Attenuator)
• Direct/Line-Straight: yes

Special Features

• IR remote control
