Kenmerken

ConditieGebruikt
LuidsprekersysteemStereo
Vermogen60 tot 120 watt

Beschrijving

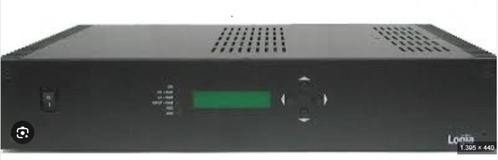

Logia - logibit 1200
omschrijving: staat:gebruikt
bandwidth: la (teleloop): 100 hz - 5 khz (+/- 3 db) | pa (loudspeaker): 20 hz - 20 khz (+/- 3 db) distortion : la (teleloop): < 0,1% (loudspaeaker) < 0,1% cross talk < 60 db signal-to-noise ratio > 64 db agc: longtime attack time: 1-2 sek |averaging release time: 10-15 sek. Max amplification: 12 db max attenuation: 20 db agc: limiter attack time: 1,5 ms (typ.) Release time: 120 ms (typ.) Attack level: +12 db sensitivity microphone input: 1,8 k/-64 dbu (0,5 mv) phantom power: 15 v line input: 2,5 kω/-34 dbu (15 mv) patch input: > 7 kω/-10 dbu (250 mv) tape input: 47 kω/-10 dbu (150 mv) tone control la (teleloop): bass: +/- 6 db ved 100 hz | treble: +/- 6 db ved 5 khz pa (loudspeaker): 14-band equalizer: +/- 12 db, 25 hz-10 khz output level: patch output: 100ω/-78 dbu ➔ -10 dbu (1 uv ➔ 250 mv) tape output: 600ω/ -14 dbu (150 mv) pa output: 2 x 30 w or bridged 1 x 50 w (8ω/100 v) la output: 4 a rms, continuous 16 a peak (125 ms) 65 v rms power consumption basis model: medium output: 140 w maximum output: 330 w with pa module: medium output: 190 w maximum output: 450 w frequency stability 0-100 m2 :0,75■ /14 awg,single turn 100-150 m2 : 1,5■ /12 awg,single turn 150-600 m2 :2,5■ /10 awg,single turn 600-1000 m2 :4■ /11 awg,single turn 1000-1200 m2 : 6■ /9 awg,single turn the impedance of the loop wire should be minimum 0.5 Ω Coverage up to 1200 m2 (according to the iec 118-4 standard) dimensions height: without 19in fittings: 82 mm/3.23In with 19in fittings: 88,9 mm/3.5In (2u) width: without 19in fittings: 430 mm/17in with 19in fittings: 483 mm/19in depth: 270 mm/10.7In weight basis model: 9.5 Kg 2 x 100 v transformers: 1.15 Kg 3 x balanced xlr input module: 0.25 Kg 2 x wtu module: 0.50 Kg color black
winkelprijs ca 450 euro de logia mag weg voor minimaal 35 euro incl garantie op werking!! Ps,versturen is dubbel tarief gezien het gewicht!!!!!
Advertentienummer: m2298974372470sinds 12 aug. '25, 14:26
