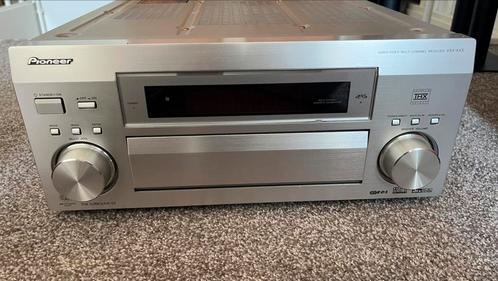

Pioneer VSX-AX3 in nieuwstaat

Een hele nette Pioneer 7 kanaals receiver.

Deze heeft enkele jaren netjes opgeslagen gestaan en mag weg wegens verhuizing. Incl. afstandbediening.


Specs:
General

• Manufacturer: Pioneer
• Model: VSX-AX 3
• Type: A/V receiver
• Years of manufacture: 2003 - 2004
• Made in: Indonesia
• Colors:
• Black: VSX-AX3-K

Silver: VSX-AX3-S

• Remote control: yes
• Power consumption:
• Operation: 600 W max.

Stand-by: 0.8 W

• Dimensions: 420 x 188 x 464 mm (WxHxD)
• Weight: 18,3 kg
• New price approx.: 1'199 Euro

Connections

• Number of inputs:
• Audio.

Digital: 4 (2 opt./2 coax.) Analogue: 9 (CD/2*Tape/MD/Line/2*VCR/TV-Sat/DVD-LD) + 7.1 MultiCH.In

• Antenna: 2 (AM/FM)

• Video

Analogue: 5 (2*VCR/TV-Sat/DVD-LD/Video) Cinch + SVideo

• Number of Outputs:
• Audio

Digital: 2 (2 opt.)

• Analogue: 6 (2*Tape/2*VCR/TV-Sat/DVD-LD) + 7.1-PreOut

• Video

Digital: none available

• Analog: 3 (Monitor out/2*VCR) Cinch + SVideo

Technical Data
Amplifier

• Continuous power at 8Ohms at distortion:
• 7*100W at 1% distortion

• Rated power into 8ohms at distortion:
• 100w + 100w (20-20khz) at 0.09%.

• dynamic power

8 Ohm

• Total harmonic distortion:
• Attenuation Factor:
• Input (Sensitivity/Impedance).
• Line: 335mV/47kOhm

• Output (level/impedance):
• Line: 335mV/2.2kOhm

• Frequency response: 5-100kHz +0/-3dB (Line)
• Tone control
• Bass: ±6dB (100Hz)

Treble: ±6dB (10kHz)

• Loudness: yes, +4/+2dB (100Hz/10kHz) at volume position '-40
• Subsonic: no
• Mute: yes
• Direct/Line-Straight: yes
• Ripple spacing:
• Line: 101dB A-Mains, shorted.
• Line: 92/65dB (continuous power rating/50mW; not shorted)

• Stereo Channel Separation:

Tuner

• Reception: AM/FM
• Frequencies:
• FM: 87.5Mhz-108Mhz
• AM: 531kHz-1602kHz

• Frequency response:
• FM: 30Hz-16kHz (+-1dB).

• Input sensitivity:
• FM: Mono 15.2dBf, IHF (1.6uV/75Ohm).
• AM: IHF 350uV/m

• Distortion factor:
• FM: Stereo 0.6% (1kHz).

• Signal to noise ratio:
• FM: Mono/Stereo 62/58dB

AM: 50dB

• Channel separation:
• FM: 70dB

• selectivity:
• AM: 30dB

• Co-wave selection:
• Spurious wave selection:
• IF attenuation:
• IF attenuation:
• AM suppression:
• Output level:
• RDS: yes
• Station memory: 30 stations
