Vintage versterker en tuner set van Sony. Helemaal nagekeken en speelt tip top.

Enkel puntje, de originele volume knop ontbrak en is vervangen.

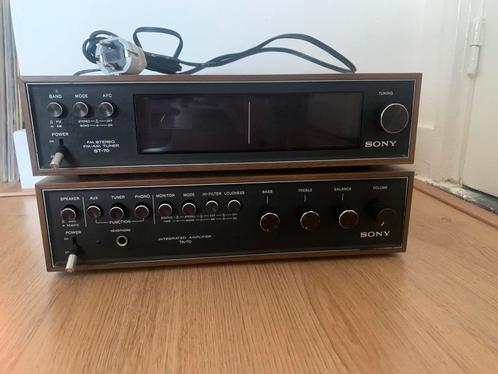

Sony TA-70 Stereo Integrated Amplifier (1972-76)


• Power output: 30 watts per channel into 8Ω (stereo)
• Frequency response: 30Hz to 50kHz
• Total harmonic distortion: 2%
• Input sensitivity: 3.5mV (MM), 300mV (ceramic), 435mV (DIN), 250mV (line)
• Signal to noise ratio: 60dB (MM), 65dB (line)
• Dimensions: 330 x 87.5 x 245mm
• Weight: 3.8kg
• Year: 1972


Sony ST-70 tuner (1972-76)


• Tuning Range FM: 87,5 - 108 MHz (3,43 - 2,78 m)
• Aerial Antenna: 300 Ω balanced
• Intermediate Frequency: 10,7 MHz
• Sensitivity: 2 µV, (s/n30 dB)
• Signal-to-Noise ratio: 65 dB
• Capture Ratio: 4 dB (IHF)
• Image Rejection: 40 dB (IHF)
• IF Rejection: 90 dBAM
• Suppression: 45 dB
• Frequency Response: 20 -15,000 Hz ±3 dB
• Harmonic Distortion : Monaural : 0,5% at 400 HzStereo : 1,0 % at 400 HzStereo Separation: 35 dB at 400 Hz
• Dimensions (W x H x D): 330 x 87 x 245 mm (13" x 3-1/2" x 9-7/10") including projecting parts
• Weight: 2,8 kg (6 lb 2 oz)
