In nette en in technisch naar behoren functionerende Dolby Prologic versterker

Model: TA-VE100

Dolby Prologic en stereo weergave
Intern schoon/stofvrij

Description:

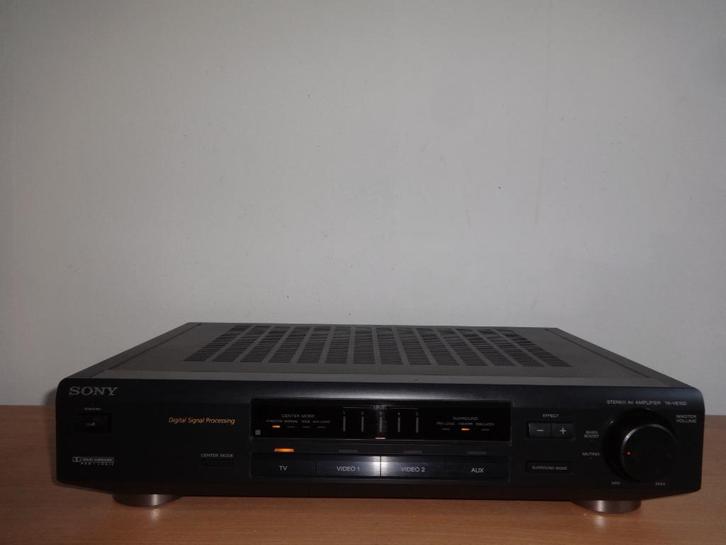

The Sony TA-VE100 is a stereo AV amplifier designed for home theater use, released around 1997 with an original price of ¥33,000.
It supports Dolby Pro Logic Surround sound and features three surround modes: Dolby, Theatre, and Simulated, with a fixed 20 ms delay time for Dolby surround.
The amplifier provides a maximum practical output of 35W + 35W for the front channels, 35W for the center channel, and 15W + 15W for the rear channels under EIAJ standards at 6 Ω.
The frequency response for the line system is 20 Hz to 20 kHz ± 2 dB, measured when the surround function is off and only the front speakers are active.
The device includes an HD input for 3-1 stereo, enabling compatibility with Hi-Vision TV and Hi-Vision LD audio, though a TV with a built-in MUSE decoder or a separate MUSE decoder is required to utilize this feature.
It features two composite video inputs and two composite video outputs (with one dedicated for monitor output), along with three line audio inputs and one audio output for recording.
The power supply operates on 230 VAC at 50Hz or 60Hz, with a power consumption of 70W.
The unit measures 430 mm in width, 95 mm in height, and 280 mm in depth, and weighs 4.6 kg.


Specifications:
AV amplifier
Amplifier Unit
Maximum Practical Output (EIAJ, 6 Ω)
Front : 35W + 35W
Center : 35W
Rear : 15W + 15W
Frequency characteristic
Line system : 20 Hz to 20 kHz ± 2 dB (front only, when surround is OFF)
Surround Section
Mode: Dolby, Theatre, Simulated
Delay time: 20 ms fixed (Dolby surround)
Effect level: 5 levels
Input balance
AutoInput / Output Terminal
Audio input: Line : Route 3, HD : 1 system
Audio Out
Rec out : 1 system
Video input: Composite : 2 systems
Video Out: Composite : 2 systems (Monitor 1 system among them)
General: Power 230 VAC, 50Hz/60Hz
Power consumption: 70W
External dimensions: Width 430x Height 95x Depth 280 mm
Weight: 4.6kg
