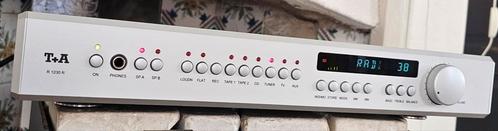

Handgemaakte kwaliteits tunerversterker van het duitse topmerk t+a (technik und anwendung) uit Herford heerlijke puristische receiver zonder fratsen.


Specifications
Pre-amplifier
Frequency response + 0 – 3 dB 0,5 Hz – 400 kHz
Signal: noise ratios (A-weighted)
High level 4 x 104 / 109 dB
Phono MM 82 / 86 dB (Non-standard version)
MC 78 / 82 dB (Non-standard version)
Sub-sonic filter fixed (Non-standard version)
Total harmonic distortion < 0,001 %
Intermodulation < 0,001 %
Channel separation > 90 dB
Nominal input sensitivity
High level 250 mV / 20 kOhms
MM 1 – 5 mV
16 capacitances
MC 60 – 1000 uV
16 impedances
Outputs
Headphones 50 Ohms
2 x Tape 250 mV / 100 Ohms
PRE out Cinch nominal 1 V eff
max. 9,5 V eff
Impedance 22 Ohms
Dolby surround interface with fixed level (TASI) present
Output stage
Nominal output 8 Ohms 100 Watts
per channel 4 Ohms 150 Watts
Peak output 8 Ohms 150 Watts
4 Ohms 290 Watts
Power bandwidth 1 Hz – 300 kHz
Frequency response + 0 – 3 dB 1 Hz – 400 kHz
Slew rate 60 V/us
Damping factor > 500
Signal: noise ratio (A weighted) > 110 dB




Total harmonic distortion < 0,002 %
Reservoir capacity 50000 uF
Mains supply 110 V or 220 / 240 V, 50 Hz 300 VA
Dimensions 7,5 x 44 x 39 cm
Weight 11 kg
Colours Black (9005), silver aluminium,
chrome (Non-standard version)
Remote control (Non-standard version)
Phono module replaces one high-level
input
Tuner
Tuning range FM 87,5 – 108 MHz
Sensitivity
mono, S/N = 26 dB 0,9 uV
stereo, S/N = 46 dB 28 uV
Overload margin > 110 dB
Attenuator (local, DX) dynamic switchable
Tuned RF stages 4 x quartz PLL, digital
Selectivity, (df = 300 kHz) N/W 80 dB/60 dB
Stereo crosstalk attenuation (1 kHz) > 40 dB
MPX filter 19 kHz + 38 kHz
Distortion 40 kHz deviation, stereo wide < 0,10%
stereo narrow < 0,15 %
mono narrow < 0,10 %
Signal: noise (A-weighted) m/s > 79 dB / 72 dB
Frequency response -/+ 1,5 dB 5 Hz – 15 kHz
RDS display Station name
Remote control Via R system


Klinkt geweldig muzikaal en homogeen in uitstekende staat meer info op het internet afstandbediening wordt niet standaard meegeleverd, maar is optioneel (handset + infrarood oog) te koop voor 675,- (zonder de opties) wordt geleverd met 3 maanden garantie opsturen en/of paypal: kosten & risiko koper
