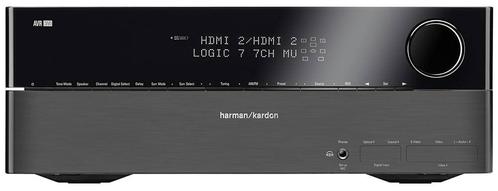

Harman Kardon Receiver Logic 7 Cinema 7.1 Dolby Digital DTS

AVR 350 400 Watt

Inclusief Afstandbediening & Digitale Handleiding

Is te beluisteren

SPECS
General Specifications

Power Requirements
AC 120V/60Hz
Power Consumption
65W idle, 540W maximum (7 channels driven)
Digital Inputs (coaxial/optical)
3/3 on rear; 1/1 on front
HDMI
Two inputs/1 output, with audio and video processing. Simplay HD verified.
Analog Inputs
1 A/V on front panel
Analog Inputs
2 audio-only
Analog Inputs
4 A/V on rear panel
Analog Inputs
6-/8-channel input
Analog Inputs
The Bridge/DMP
Analog Inputs
tuner
On-Screen Display
Yes, with component video and HDMI
Multizone Capability
Audio; A-BUSREADY; surround back channels assignable to remote zone; ZoneII remote
Auto Setup
EzSet/EQ room equalization
Remote Control
Eleven-device, programmable remote
Shipping Weight (System, Accessories, Packing)
35.6 lb (16.2kg)
Audio Specifications

# of Amplifier Channels
7
Continuous Average Power (FTC) per Channel (stereo mode)
70 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels (L & R Side, L & R Back)
55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
100dB (IHF-A)
Surround System Adjacent Channel Separation:
Dolby Pro Logic I and II
40dB
Dolby Digital
55dB
DTS
55dB
Frequency Response
10Hz – 130kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Unmeasurable
Slew Rate
40V/µsec
Dimensions

Width
17-5/16 inch (440mm)
Height
6-5/8 inch (165mm)
Depth
15 inch (382mm)
Weight
34.5 lb (15.7kg)
Dimensions:
Carton Dimensions (W x H x D)
22 inch x 10-1/2 inch x 18-1/2 inch (559mm x 267mm x 470mm)
Video Specifications

Television Format
NTSC
Input Level/Impedance
1V p-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response:
Composite and S-Video
10Hz – 8MHz (–3dB)
Component Video
10Hz – 100MHz (–3dB)
HDMI
Audio and video processing
Tuner Specifications

Frequency Range
AM... 520 – 1720kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... Mono/Stereo 70/68dB
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion
FM... Mono/Stereo 0.2/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Amplifier Specifications

Amplifier Power (RMS)
55 x 7 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
High Instantaneous Current Capability (HCC)
± 35 Amps
