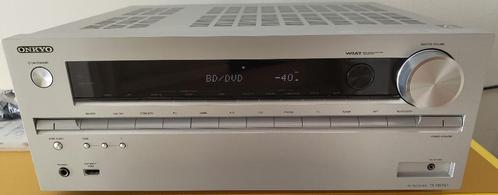

Onkyo TX-NR747 receiver zilver 7.1 bluetooth tunein airplay

Mooie receiver die jaren trouw dienst heeft gedaan voor allerhande (HDMI) bronnen. Nooit problemen mee gehad. Genoeg vermogen om een flinke kamer te vullen met 7 kanalen en 4K beeld, inclusief Dolby Atmos, Bluetooth, Airplay, Tunein, noem maar op. Met de goed aangeschreven AKM4458 DAC met een mooie muzikale klank.
Omdat ik graag Auro3d wilde proberen ben ik overgestapt naar een wat nieuwere receiver en mag deze naar een nieuw adres. Uiteraard inclusief de originele afstandsbediening en handleiding en de afstelmicrofoon voor het Audyssey systeem. FM lintantenne ook nog beschikbaar. Eventueel te beluisteren met een paar stereo speakers.

Nieuwprijs was rond de 700 euro. Mag nu weg voor 325 euro. Opsturen ook mogelijk in overleg en tegen kostprijs. Originele doos ook aanwezig. Zie reviews en specificaties hieronder. svp geen onzinbiedingen zoals halve prijs en vragen naar het minimum.

Each of the 7 channels have 175 watts which might not be a big increase compared to the 170 watts per channel in the less expensive TX-NR646 but the biggest draw of the Onkyo TX-NR747 is its THX certification. THX had to conduct thousands of tests to see if the Onkyo TX-NR747 is truly capable of delivering that cinematic experience to the living room. This receiver passed these tests and the sound comes out great although it is hard to notice any gains when compared directly to the TX-NR737 until you start playing lossless music. This is where the Asahi Kasei AK4458 shines because FLAC files and other hi-res formats play back extraordinarily well. Even vinyl was tested highlighting the receiver’s ability to handle analog audio without problems. For movies, DTS:X really helped make simple setups sound more dynamic.

Breathtaking Surround Sound is Only the Beginning
Bring home THX ® Select2 ™ Plus theater-reference-quality audio with the 7.2-channel TX-NR747 Network A/V Receiver, featuring mind-blowing
DTS:X ™ and Dolby Atmos ® multi-dimensional audio formats. Onkyo’s high-current amplification system drives speakers to reproduce soundtracks
with maximum impact and fidelity at 175 W/Ch. UltraHD video capability is equally impressive, with eight latest HDMI® spec terminals including
dedicated HDCP 2.2 compatible inputs for premium 4K video content and two HDMI outputs for video in separate rooms. The TX-NR747’s
high-grade 384 kHz/32-bit AKM DAC not only brings movies to life, but music as well. Conveniently stream audio over built-in Wi-Fi® , Bluetooth,
AirPlay, or internet music services including Spotify Connect and Pandora. Use the free Onkyo Remote app to stream audio stored on mobile
devices or 24-bit Hi-Res PCM or 5.6 MHz DSD audio from your home network over DLNA, and control playback in two zones. Plus, the
TX-NR747 has a phono equalizer input to connect a turntable and updated AccuEQ for precise room acoustic calibration.
• THX®-Certified Audio Quality
• DTS:X™ and Dolby Atmos® Support
• 175 W per Channel
• Hi-Current Amp Design for Authentic Sound Reproduction
• HDMI® 8 In / 2 Out Including 1 Front
(4K UltraHD / 4:4:4 / HDCP 2.2)
• Bluetooth Audio / Wi-Fi® with Pandora, Spotify, and AirPlay
• DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res Audio Capable
• 384 kHz/32-bit Hi-Grade DAC
• AccuEQ Room Acoustic Calibration
ADVANCED FEATURES
• New DTS:X ™ New Generation Sound Format Ready
• Supports New Dolby Atmos® Format for Exciting Multidimensional
Sound
• THX ® Select2 ™ Plus Certified for Theater Reference Sound
• 4K/60 Hz-Capable HDMI® Terminals for UltraHD
Entertainment*1, including HDR & 4:4:4 Color Space
• Supports HDCP 2.2 for Future 4K/Full HD Video Streaming and
Broadcast*2
• Built-in Wi-Fi® Certified Wireless LAN Capability
• Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2,
AVRCP v1.3) with Advanced Music Optimizer DSP Technology
• Internet Radio and Music Streaming Subscription Services Included
(TuneIn Radio, Pandora® , Slacker™, SiriusXM Internet Radio® , Spotify,
and Deezer)*3
• Playback Compressed, Lossless, and Hi-Res Audio via Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple
Lossless, DSD 5.6 MHz, LPCM*4, and Dolby® TrueHD)
• Proprietary AccuEQ Room Calibration with Mic Included
• Advanced Music Optimizer to Improve Compressed Digital Audio
Quality (Bluetooth Audio Included)
• Control and Stream with Free Onkyo Remote Streaming Apps for
iPod touch® /iPhone® *5 and Android™ Devices*6
• Phase Matching Bass Boost for Deep Bass and Clear Mid-Range
• Powered Zone 2 and Zone 2 Line-Outs for Distributed Audio Playback
• Whole House Mode for Synchronized Housewide Audio
• Bi-Amping Capability for Front Channels

• 1 6G video is supported on HDMI inputs 1/2/3, Main Out, and Sub Out. *2 HDCP 2.2 is

supported on HDMI inputs 1/2/3, Main Out, and Sub Out. *3 Availability of services depends
on region. Some services may require a paid subscription and firmware update. Availability of
third-party services advertised here is accurate at the time of publication, but may be subject
to change without notice. *4 LPCM is supported via DLNA only. *5 Compatible with iPod touch
(3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *6 Requires
Android 2.1 or later.
AMPLIFIER FEATURES
• 175 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC);
110 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven,
FTC)
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for
S/PDIF Audio
PROCESSING FEATURES
• HDMI® Support for 4K/60 Hz and 4:4:4 Color Space,
3D, Audio Return Channel, DeepColor ™, x.v.Color ™, LipSync,
Dolby Atmos® , Dolby® TrueHD, DTS:X ™, DTS-HD Master Audio™,
DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• AK4458 384 kHz/32-bit DAC (8 Channels x 1)
• Dual 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs
• USB Port (Rear) (5 V, 1 A)
• Mass Storage Class USB Memory Playback Capability
• 2 Component Video
• 3 Composite Video Inputs
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 8 Analog Audio Inputs
• Phono Input for Turntable Connection
• 2 Parallel Subwoofer Pre-Outs
• Location Numbered Speaker Terminal
• 1/4" Headphone Jack
OTHER FEATURES
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
• Graphical Overlaid On-Screen Display (OSD) via HDMI with
Quick Set-Up
• Hybrid Standby Function with HDMI Passthrough
• Smart Grid-Ready
• Tone Control (Bass/Treble)
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets
• Certified with DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive Over HDMI) for System Control
• Preprogrammed RI (Remote Interactive) Remote Control
HIGHLIGHTS
THX ®-Certified Amp Quality
THX certification guarantees the same high volume, low
distortion sound you experience in a commercial theater
in your listening room. The TX-NR747 meets the most
demanding & rigorous performance certification: it has to pass
75 test categories, 2,000 tests, covering 14,000 data points.
THX Select2 Plus is recommended for screen-to-seat viewing
distances of 10-12 feet.
DTS:X ™ and Dolby Atmos ® Support
DTS:X is a next-generation object-based surround sound
technology that includes height to deliver a fully-
immersive listening experience to your living
room. DTS:X provides listeners
the ultimate in flexibility,
immersion, and interactivity. Dolby Atmos transports you from
an ordinary moment into an extraordinary experience with
captivating, multidimensional sound that fills your room and
flows all around you to move your mind, body, and soul.
High-Current Amp Design for Authentic
Sound Reproduction
High instantaneous current enhances speaker control for
accurate and dynamic audio reproduction. It's the cornerstone
of Onkyo’s amplification philosophy.
HDMI® 8 In / 2 Out Including 1 Front
(4K UltraHD / 4:4:4 / HDCP 2.2)
The latest HDMI specification and HDCP 2.2 compatibility
support the latest formats and technologies planned for
Hollywood content. This latest HDMI spec offers a significant
increase in bandwidth (up to 18Gbps) to support new
features such as 4K@50/60 (2160p), which is 4 times the
clarity of 1080p/60 video resolution, and 4:4:4 color space.
This Onkyo AVR enables transmission of High Dynamic Range
(HDR) formats, and provides enhanced picture quality by
simultaneously enabling greater detail for both the dark and
bright parts of an image.
Bluetooth / Wi-Fi® with Pandora, Spotify, and AirPlay
Stream virtually any audio from your smartphone, tablet, or PC
to your home theater for clear and powerful sound. Available
internet radio and music subscription services include Pandora,
Spotify, and more.
DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res
Audio Capable
Onkyo A/V receivers are engineered for
universal Hi-Res compatibility and ease of
use. Use the remote app to locate your
192/24 and 96/24 albums (including
5.6 MHz DSD playback) on PC or NAS
and bask in the clarity, depth, and detail of
high-resolution music.
384 kHz/32-bit Hi-Grade DAC
A premium-quality AK4458 digital-to-analog converter from
Asahi Kasei unlocks the full potential of any audio format,
thanks to unique low-distortion filtering technologies for
clear sound.
TX-NR747 7.2-Channel Network A/V Receiver
SPECIFICATIONS
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. THX, the THX logo, and Select2 are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together
are registered trademarks, and DTS:X and DTS-HD Master Audio are trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. AirPlay, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc. "Made for iPod", "Made for iPhone" and
"Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance. AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later. WRAT,
Music Optimizer, CinemaFILTER, and Theater-Dimensional are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.
NPR No. 15N15 04/15

Amplifier Section
Power Output
All Channels 175 W/Ch (6 Ohms, 1 kHz, 0.9% THD,
1 Channel Driven, FTC)
110 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08%
THD, 2 Channels Driven, FTC)
Dynamic Power 250 W (3 Ohms, Front)
230 W (4 Ohms, Front)
130 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Damping Factor 60 (Front, 1 kHz, 8 Ohms)
Input Sensitivity and Impedance
200 mV/47 k-ohms (Line)
2.5 mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance
100 mV/2.2 k-ohms (Zone 2 Line Out)
200 mV/470 Ohms (Subwoofer Pre Out)
Maximum RCA Output Level and Impedance
1.0 V/2.2 k-ohms (Zone 2 Line Out)
2.0 V/470 Ohms (Subwoofer Pre Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 100 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance 4 or 6 Ohms–16 Ohms
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ohms (Component Y)
0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR)
1.0 Vp–p/75 Ohms (Composite)
Component Video Frequency Response
5 Hz–13.5 MHz/+0 dB, -3 dB
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 120 V~, 60 Hz
Power Consumption 6.9 A
No-Sound Power Consumption
70 W
Standby Power Consumption
0.1 W
Dimensions (W x H x D) 17 1/8 ˝ x 6 7/8 ˝ x 14 15/16˝
(435 x 175 x 379 mm)
Weight 24.3 lbs. (11.0 kg)
CARTON
Dimensions (W x H x D) 22 7/16˝ x 11 3/4˝ x 18 7/16˝
(570 x 298 x 469 mm)
Weight 32.0 lbs. (14.5 kg)
