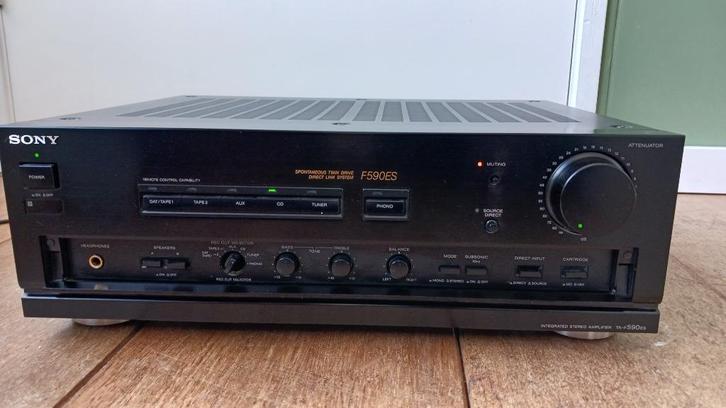

Zeer nette en goed werkende Sony stereo versterker uit de ES-serie.
Klinkt geweldig!

• 8 Ohm: 2x 95 W DIN
• 4 Ohm: 2x 130 W DIN

Kan hier beluisterd worden. Eventueel opsturen is mogelijk.

Connections

• Number of inputs: 7 (6 switchable by remote control, Direct-In (7th) only on the unit).
• Phono MM: 2,5 mV (50 kOhm)
• Phono MC: 0.17 mV (100 Ohm)
• Tuner, CD, Direct In, Tape 1,2, Aux, Adapter: 150 mV (50 kOhm)

• Number of outputs: 4
• Tape Rec Out 1,2, Adapter: 150 mV, (1 kOhm)
• Headphones: 25 mW (8 Ohm)
• Loudspeaker switchable: A / B / A+B / Off

Technical Data

• Continuous power (RMS) both channels simultaneously controlled
• 8 Ohm: 2x 95 W DIN
• 4 Ohm: 2x 130 W DIN

• Dynamic power
• 8 Ohm:
• 4 Ohm:

• Dynamic headroom: 2 dB at 4 Ohm, 1.2 dB at 8 Ohm
• Total harmonic distortion: 0.005% at 10 W output power into 8 Ohm
• Attenuation factor: 100 at 8 ohms/1kHz
• Frequency response: 2 Hz - 200 kHz +0/-3 dB
• Signal-to-noise ratio: 105 dB (high level, 150 mV), Phono MM: 95 dB (5.0 mV), MC: 77 dB (0.5 mV)
• Bias setting: mV
• Tone control: Yes

Bass: ± 7 dB (100 Hz) Treble: ± 6 dB (10 kHz)

Special Features

• Gibraltar drivers= anti-magnetic, very good resonance damping, rock-hard base cast from polyester resin calcium carbonate with glass fibre fabric.

MOS-FET power amplifiers= realize a high output power over a wide frequency range

• Class-A driver stages
• Toroidal transformer encapsulated (low stray field), power supply with 2 additional electrolytic capacitors (no longer available on the successor TA-F606ES)
• Motor driven input selector switch
• Motor-driven dust-proof volume potentiometer (120 kOhm)
• Direct-In= to bypass the input and RecOut selector
• Phono MM/ MC selector
• Record Out selector
• Source Direct switch
• Muting switch: -∞ dB
• Subsonic filter: 6 dB/octave below 15 Hz
• Gold-plated RCA jacks
• Wooden side plates available as an optional extra

System: Low-noise NAB-equalized preamplifier with high gain, passive tone control, purely complementary SEPP power amplifier, MOS-FET power amplifiers
