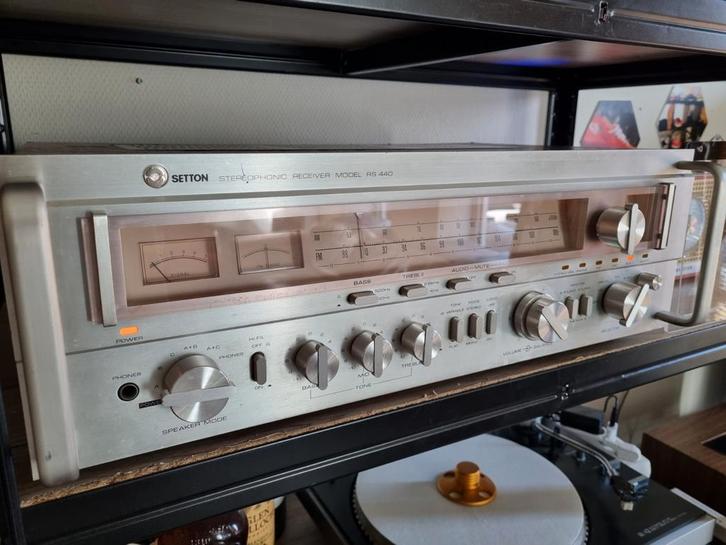

Aangeboden: een zeldzame Setton RS-440 stereo receiver. Deze receiver klinkt fantastisch en is recentelijk geserviced. De service omvatte een grondige reiniging, reiniging van de potmeters, afstelling van de FM en ruststroom, en vervanging van de verlichting. Bon van de service is aanwezig.

Het toestel kan uitgebreid beluisterd worden voor aankoop. Wegens het formaat is alleen afhalen mogelijk.


Voor vragen stuur gerust een bericht.

Manufacturer: Setton
Model: RS-440
Type: Receiver
Years of manufacture: 1977 - 1981
Made in: Japan
Color: Front silver, housing wood foil
Power consumption: 360 W max.
Dimensions: 540 x 170 x 300 mm (WxHxD)
Weight: approx. 14 kg
Original price approx.: 1'998 DM

Connections

Number of inputs:
Phono (MM) switchable High: 2.5 mV, max. 150 mV, Low: 5 mV, max. 300 mV.
Microphone: 6 mV, 10 kOhm
Aux 1, 2: 150 mV

Tape Play 1, 2: 150 mV
Tape 2 DIN: 150 mV

Antenna (FM: 75, 300 Ohm, AM).
Number of outputs:
Tape Rec 1, 2: 150 mV
Tape 2 DIN: 30 mV

Headphones: 6.3mm jack plug
3 speaker pairs

Technical Data

Amplifier

Continuous power (at distortion):
8 Ohm: 2x 55 W (RMS, 20 - 20,000 Hz), 2x 60 W (1 kHz).
4 Ohm: 2x 80 W (1 kHz)
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.1%, 0.05% at 1000 Hz
Damping factor: 35 at (1 kHz, 8 Ohm)
Frequency response: 20 - 20,000 Hz
Power bandwidth: 5 - 40,000 Hz
Signal-to-noise ratio:
Phono Low: 70 dB
Phono High: 65 dB
AUX: 90 dB
Tape: 90 dB
Stereo Channel Separation:
Tone control:
Bass: ± 10 dB, switchable at 62 Hz, 125 Hz
Tilt frequencies switchable: 250 Hz, 500 Hz
Mids: ± 6 dB, 1 kHz
treble: ± 10 dB, switchable at 10 kHz, 20 kHz

Toggle frequencies switchable: 2.5 kHz, 5 kHz
Loudness: + 12 dB at 50 Hz, + 3.5 dB at 10 kHz
High Filter: - 10 dB at 10 kHz
Low Filter (Subsonic):
Audio Muting: - 20 dB

Tuner:

Reception: FM, AM
Frequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 1.8 µV
MW: 25 µV
Frequency response: 30 - 15'000 Hz
Distortion factor: Stereo 0.4 %, Mono 0.15 % at 1 kHz
Signal-to-noise ratio:
FM: 72 dB for mono, 67 dB for stereo
AM: 45 dB

Stereo channel separation: > 40 dB at 1 kHz
Selectivity:
FM: 70 dB
MW: 45 dB
Co-wave selection: 1.25 dB
Spurious wave selection: 90 dB
Image frequency attenuation:
FM: 80 dB
MW: 60 dB
IF attenuation:

FM: > 90 dB
MW: > 85 dB
AM suppression: 65 dB
FM muting
MPX filter

Special Features

3-fold overload indicator, electronic protection circuitry
Ceramic filters
Mono / Stereo switch
Microphone mixer, 6,3mm jack plug front panel
Sound Linear Switch
