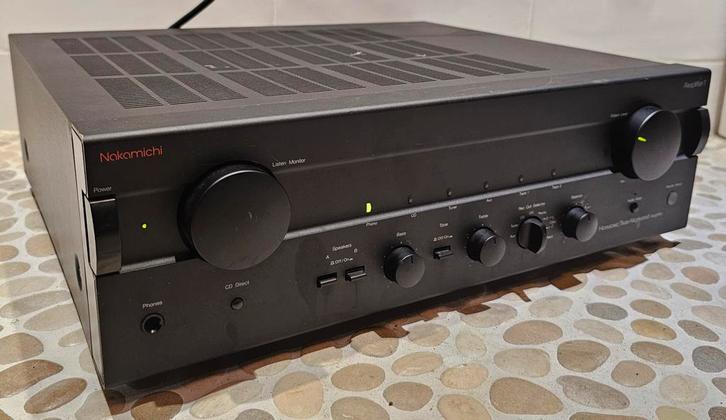

This is an integrated amplifier with a focus on sound quality, with harmonic time alignment technology at the core.

The Harmonic Time Alignment Theory was developed by Steve Kalison of the Nakamichi US Research Center as a result of many years of research focusing on the characteristics of NFB itself. It directly addresses the timing of the fundamental sound and the distortion component and the action of NFB.
The Amplifier1 uses a newly developed amplifier circuit based on this theory for both the preamplifier and power amplifier sections. This circuit uses a wide-band, low-gain open-loop design to keep the amount of NFB in the audio band constant and to minimize the amount of NFB itself. This circuit combines techniques to correctly adjust the phases of the fundamental sound and distortion components over the entire audio band.

The line amplifier section is composed of discrete elements so that high-quality sound devices can be installed.
As a result, high-quality parts which cannot be used in IC configuration can be used everywhere, and the frequency characteristics of the open-loop gain can be kept constant.
We also use a main volume driven by a motor drive, a motor drive rotary selector, and an electrolytic capacitor with an emphasis on sound quality.

The power amplifier section uses a total of 8 transistors with 2 parallel drives, and has a current supply capability of peak current 28A.

It uses a multi-regulated power supply system to prevent interference between sections and stages around the power supply. The Amplifier1 in particular has separate transformer windings for the preamp section, power amplifier section and control section, and separate local regulators for the equalizer amplifier and line amplifier.
The ground circuit also uses Nakamichi's original isolated ground system to reduce noise interference to the signal system.

Equipped with a high-gain equalizer amplifier with a transistor differential input.

Equipped with CD direct input, signal input from here jumps selector and balance volume, and simple signal transmission is possible by passing through dedicated 4-connected volume.

Equipped with tone control and muting circuit.

It comes with a remote control that can adjust volume, switch input, and operate Nakamichi CD player and deck.

Connections

Number of inputs: 7
Phono MM/MC: 2.5 mV/47 KOhm; 0.125 mV/100 Ohm
CD-Direct, CD, Tuner, AUX, 2x Tape: 150 mV/20 KOhm
Number of outputs:
2x Rec-Out 150 mV/1.5 KOhm
2x loudspeaker
Headphones

Technical Data

Continuous power:
8 Ohm: 2x 80 Watt
4 Ohm: 2x 130 Watt

Dynamic power
4 Ohm: 2x 180 Watt
2 Ohm: 2x 270 Watt
Total harmonic distortion: < 0.1%
Attenuation factor:
Signal-to-noise ratio:
Stereo channel separation:
Frequency response: 10 - 50,000 Hz
Tone control:
Bass: ± 10 dB at 20 Hz
Treble: ± 10 dB at 20000 Hz

Loudness: No
Subsonic: No
Mute: Yes
Direct/Line-Straight: No

Special Features

Tone control switchable
Record selector switch

Deze prachtige legendarische Japanner is te koop voor 325,- inclusief 3 maanden garantie

Vooraf te beluisteren

Opsturen en/of Paypal: Kosten en risico koper
