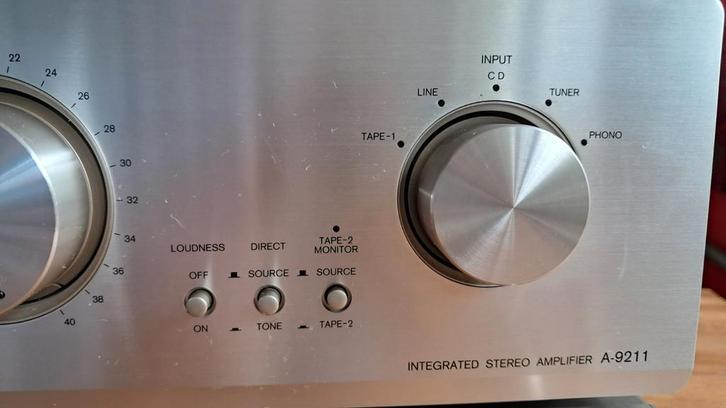

Mooie versterker Onkyo A 9211.
Sterk genoeg voor aansturing boxen tot 100watt bij 8 ohm.

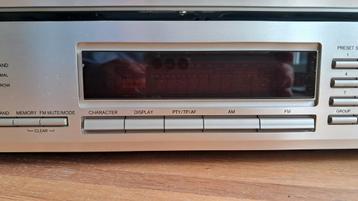

Ook bijpassende tuner te koop, Onkyo T 4511

Inclusief afstandbediening
Versterker 40 €
Tuner 25 €
Samen als set 50€

General

Manufacturer: Onkyo

Model: A-9211

Type: Integrated amplifier

Years of manufacture: 1998 - 2006

Manufactured in:

Color: Silver, Black

Remote control: yes

Power consumption:

Dimensions: 435 x 120 x 331 mm (WxHxD).

Weight: 6.7 kg

Original price approx.: 500 DM


Connections

Number of inputs: 6 (Cinch)

Phono MM (2,5 mV / 47 kOhm)

Tuner, CD, Line, Tape 1, Tape 2 (150 mV / 25 kOhm)

Number of outputs: 3

Headphones (6,3mm jack)

2x Tape Rec. (150 mV / 3 kOhm)

2x loudspeaker



Continuous power (at distortion factor)

8 Ohm: 2x 45 Watt (RMS), 40W (DIN)

4 Ohm: 2x 60 Watt (DIN)

Dynamic power

8 Ohm: 2x 55 Watt

4 Ohm: 2x 80 Watt

Total harmonic distortion: 0.08%

Attenuation factor: 60 (at 8 Ohm)

Frequency response: 15 - 50,000 Hz ±1dB

Signal-to-noise ratio: 80 dB (phono) / 102 dB (CD)

Stereo channel separation:

Tone control:

Bass: ±8dB (at 100Hz).

Treble: ±8dB (at 10kHz)

Loudness: yes (+8dB at 100Hz, +2dB at 10kHz)

Subsonic: no

Mute: yes, -50dB

Direct/Line-Straight: yes

Hum spacing (shorted):
