Van liefhebber voor liefhebber te koop voor een redelijke prijs.

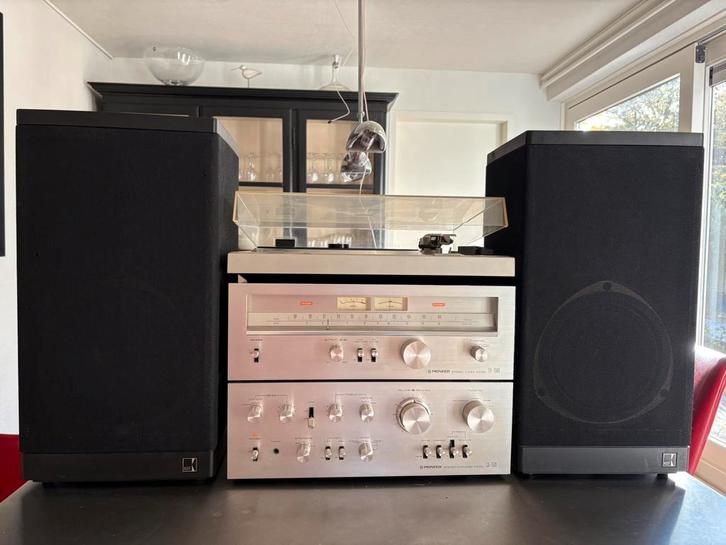

Ik ben de 1e eigenaar van deze geweldige Pioneer / Keff geluidsinstallatie. De installatie is nu te koop wegens beëindiging van mijn hobby. De versterker en tuner verkeren in zeer goede conditie en de luidsprekers klinken zeer goed. Helaas heeft de kap van de draaitafel krassen opgelopen bij de verhuizing.


Specificaties:

Pioneer SA 7500 Versterker:

Power output: 40 watts per channel into 8Ω (stereo)
Output for 4 speakers
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.3%
Damping factor: 25
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN), 1V (Pre out)
Semiconductors: 2 x FET, 35 x transistors, 21 x diodes
Dimensions: 420 x 150 x 345mm
Weight: 12kg
Accessories: connecting cord
Year: 1976


Pioneer TX 7500 Tuner:

Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 525 to 1605 kHz
Sensitivity: 1.4uV (FM)
Signal to Noise Ratio: 68dB (FM), 50dB (MW)
Distortion: 0.3% (FM)
Frequency response: 20Hz to 15kHz (FM)
Output: 650mV
Dimensions: 420 x 150 x 365mm
Weight: 8kg


Pioneer PL 200 Draaitafel:

Type: direct drive
Motor: DC servo motor
Platter: 310mm aluminium alloy die-cast
Speeds: 33 and 45rpm
Wow and flutter: less than 0.025% wrms
S/N ratio: more than 75dB
Tonearm: static balance type, s-shaped, pipe arm
Effective length: 221mm
Overhang: 15.5mm
Cartridge weight: 4 to 9g
Dimensions: 420 x 365 x 96mm
Weight: 6kg


Keff 303 serie II SP1147 Speakers:

Type: 2 way, 2 driver loudspeaker system
Frequency Response: 70Hz to 20kHz
Power Handling: 50W
Recommended Amplifier: 10W (minimum)
Impedance: 8Ω
Sensitivity: 86dB
Bass: 1 x 200mm cone
Tweeter: 1 x 25mm soft dome
Enclosure: 17 litre, closed box
Grille: black cloth
Finish: satin black
Dimensions: 508 x 265 x 230mm
Weight: 8.1kg
