Kenmerken
Beschrijving

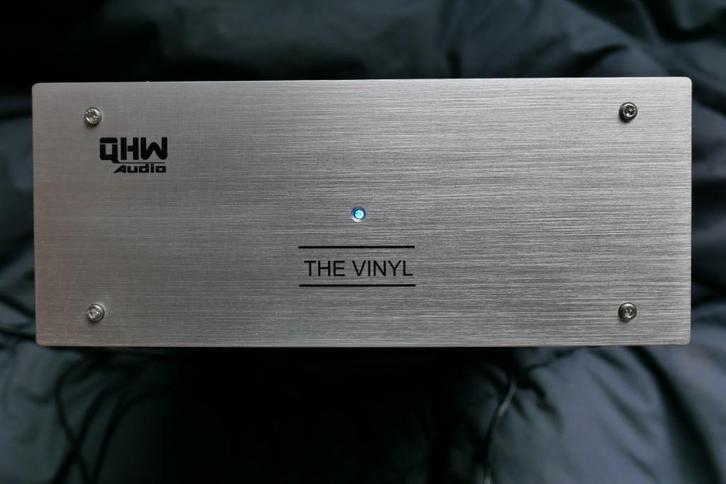

Phonostage The Vinyl van QHW Audio. Heeft MC en MM ingangen. Zeer lovende testen o.a. in Stereophile, TNT-Audio en Michael Fremer in Analog Planet. Het apparaat is compleet en in praktische nieuwstaat met netvoeding, netsnoer, gebruiksaanwijzing en originele verpakking. Nieuw gekocht direct van de fabrikant januari 2025.
Nominal gain at 1 kHz:
MM: 43 dB
MC low: 63 dB
MC high: 69 dB
Maximum output level: 9 V RMS or more.
MM input impedance: 47 kOhm
MM input capacitance: adjustable from 0 pF to 517 pF.
MC input impedance: adjustable from 10 Ohms or less to 47 kOhms.
MC input capacitance: 150 pF.
Total harmonic distortion at 1 KHz, 2 V RMS output, 10 kOhms load (20 HZ – 20 KHz band):
MM: 0,004 % or less.
MC low: 0,007 % or less.
RIAA deviation 20 Hz – 20 kHz: less than ± 0,1 dB.
Residual noise: < 300 uV (MC input shorted).
Signal to noise ratio:
MM: -84 dB or better (input shorted, referred to 2 V RMS).
MM: -96 dB or better (input shorted, referred to maximum output).
MC low: -78 dB or better (input shorted, referred to 2 V RMS).
MC low: -90 dB or better (input shorted, referred to maximum output).
Crosstalk: < -96 dB (at 1 KHz referred to 2 V RMS output in other channel).
Power consumption: < 10 W
Power supply (included): output, 24 V DC, input 100 V – 240 V AC 50 – 60 Hz.
Maximum dimensions: 243 mm (L) x 218 mm (W) x 89 mm (H) (including connectors and feet).
Weight: 2 kg
Made in Spain. Te beluisteren in Groningen.
Nominal gain at 1 kHz:
MM: 43 dB
MC low: 63 dB
MC high: 69 dB
Maximum output level: 9 V RMS or more.
MM input impedance: 47 kOhm
MM input capacitance: adjustable from 0 pF to 517 pF.
MC input impedance: adjustable from 10 Ohms or less to 47 kOhms.
MC input capacitance: 150 pF.
Total harmonic distortion at 1 KHz, 2 V RMS output, 10 kOhms load (20 HZ – 20 KHz band):
MM: 0,004 % or less.
MC low: 0,007 % or less.
RIAA deviation 20 Hz – 20 kHz: less than ± 0,1 dB.
Residual noise: < 300 uV (MC input shorted).
Signal to noise ratio:
MM: -84 dB or better (input shorted, referred to 2 V RMS).
MM: -96 dB or better (input shorted, referred to maximum output).
MC low: -78 dB or better (input shorted, referred to 2 V RMS).
MC low: -90 dB or better (input shorted, referred to maximum output).
Crosstalk: < -96 dB (at 1 KHz referred to 2 V RMS output in other channel).
Power consumption: < 10 W
Power supply (included): output, 24 V DC, input 100 V – 240 V AC 50 – 60 Hz.
Maximum dimensions: 243 mm (L) x 218 mm (W) x 89 mm (H) (including connectors and feet).
Weight: 2 kg
Made in Spain. Te beluisteren in Groningen.
...
...
...
...
...
...
...
...
...
...
...
...
