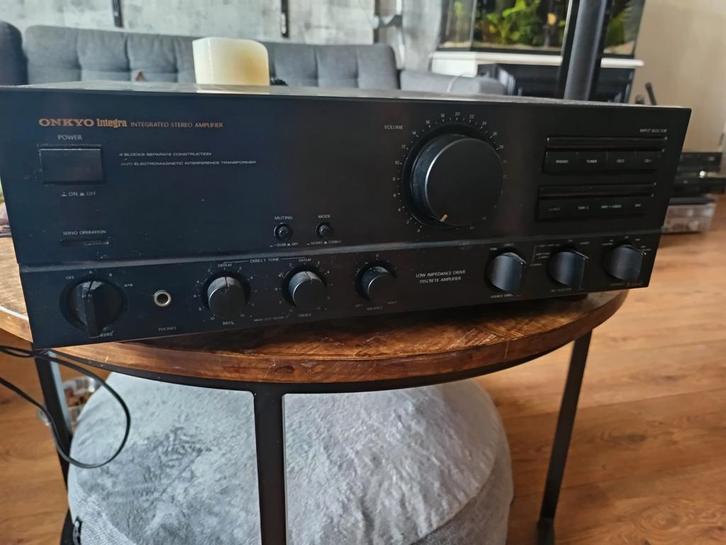

Top versterker uit de integra serie van onkyo

The Onkyo A-8650 is a vintage integrated amplifier with 90W per channel into 8 ohms, a total harmonic distortion of



0.008%0.008 %

0.008%

at rated power, and a frequency response of



2Hz−50kHz2 cap H z minus 50 k cap H z

2𝐻𝑧−50𝑘𝐻𝑧

. It features a line-straight/direct mode, a robust damping factor of 150 (at 8 ohms, 1kHz), and a high signal-to-noise ratio, including 107dB for CD input. It also includes both Moving Magnet (MM) and Moving Coil (MC) phono inputs and has a substantial power consumption of 330 watts.

Key specifications

Power Output:

Continuous:



2×90W2 cross 90 cap W

2×90𝑊

(8 Ohms, 1kHz, DIN)

Dynamic:



2×120W2 cross 120 cap W

2×120𝑊

(8 Ohms)

Total Harmonic Distortion (THD):



0.008%0.008 %

0.008%

at rated power,



0.008%0.008 %

0.008%

at 1W

Damping Factor: 150 (8 Ohms, 1kHz)

Frequency Response:



2Hz−50kHz2 cap H z minus 50 k cap H z

2𝐻𝑧−50𝑘𝐻𝑧

(+0/-1dB) for CD/Tuner

Signal-to-Noise Ratio:

Phono MM: 93dB (5mV input)

Phono MC: 74dB (0.5mV input)

CD: 107dB

Inputs: 7 stereo inputs, including MM/MC Phono, CD, Tuner, DAT, and Tape/Video

Outputs: 4 speaker terminals, 3 tape record outputs, and 1 headphone jack

Power Consumption: 330 watts

Other features:

Line-Straight/Direct mode

Subsonic filter (for phono only,



20Hz20 cap H z

20𝐻𝑧

(-3dB))

Stereo channel separation

Mute function




Vermogen: 90 watt per kanaal in 8Ω (stereo)

Frequentiebereik: 20 Hz tot 20 kHz

Totale harmonische vervorming: 0,008%

Dempingsfactor: 150

Ingangsgevoeligheid: 0,16 mV (MC), 2,5 mV (MM), 150 mV (lijn)

Signaal-ruisverhouding: 74 dB (MC), 93 dB (MM), 107 dB (lijn)

Uitgang: 150 mV (lijn)

Afmetingen: 435 x 157 x 391 mm

Gewicht: 12,5 kg
