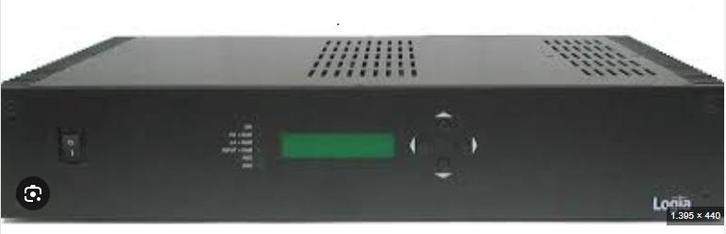

Logia - LogiBit 1200 teleloop amplifier (gebruikt)
Omschrijving: gebruikt maar in goede order (garantie opmwerking)
Bandwidth: LA (teleloop): 100 Hz - 5 kHz (+/- 3 dB) |
PA (loudspeaker): 20 Hz - 20 kHz (+/- 3 dB)
Distortion : LA (teleloop): < 0,1% (loudspaeaker) < 0,1%
Cross talk < 60 db & Signal-to-noise ratio > 64 dB
AGC: longtime Attack time: 1-2 sek |Averaging Release time: 10-15 sek.
Max amplification: 12 dB Max attenuation: 20 dB
AGC: limiter Attack time: 1,5 ms (typ.) Release time: 120 ms (typ.) Attack level: +12 dB
Sensitivity Microphone input: 1,8 k/-64 dBu (0,5 mV) Phantom power: 15 V
Line input: 2,5 kΩ/-34 dBu (15 mV) Patch input: > 7 kΩ/-10 dBu (250 mV)
Tape input: 47 kΩ/-10 dBu (150 mV)
Tone control LA (teleloop): Bass: +/- 6 dB ved 100 Hz | Treble: +/- 6 dB ved 5 kHz
PA (loudspeaker): 14-band equalizer: +/- 12 dB, 25 Hz-10 kHz
Output level: Patch output: 100Ω/-78 dBu ➔ -10 dBu (1 uV ➔ 250 mV)
Tape output: 600Ω/ -14 dBu (150 mV)
PA output: 2 x 30 W or bridged 1 x 50 W (8Ω/100 V)
LA output: 4 A RMS, continuous 16 A peak (125 ms) 65 V RMS
Power consumption Basis model: Medium output: 140 W Maximum output: 330 W
With PA module: Medium output: 190 W Maximum output: 450 W
Afmetingen :HxB 82 mmX 47mm
Gewicht: Basis model: 9.5 kg 2 x 100 V transformers: 1.15 kg 3 x balanced XLR input module: 0.25 kg 2 x WTU module: 0.50 kg color Black
Winkelprijs ca 450 euro (niet meer leverbaar)
De Logia mag weg voor minimaal 40 euro
Ps ,versturen is dubbel tarief gezien het gewicht a 11 kg dus pakket 20 kg! a 13 euro!
Omschrijving: gebruikt maar in goede order (garantie opmwerking)
Bandwidth: LA (teleloop): 100 Hz - 5 kHz (+/- 3 dB) |
PA (loudspeaker): 20 Hz - 20 kHz (+/- 3 dB)
Distortion : LA (teleloop): < 0,1% (loudspaeaker) < 0,1%
Cross talk < 60 db & Signal-to-noise ratio > 64 dB
AGC: longtime Attack time: 1-2 sek |Averaging Release time: 10-15 sek.
Max amplification: 12 dB Max attenuation: 20 dB
AGC: limiter Attack time: 1,5 ms (typ.) Release time: 120 ms (typ.) Attack level: +12 dB
Sensitivity Microphone input: 1,8 k/-64 dBu (0,5 mV) Phantom power: 15 V
Line input: 2,5 kΩ/-34 dBu (15 mV) Patch input: > 7 kΩ/-10 dBu (250 mV)
Tape input: 47 kΩ/-10 dBu (150 mV)
Tone control LA (teleloop): Bass: +/- 6 dB ved 100 Hz | Treble: +/- 6 dB ved 5 kHz
PA (loudspeaker): 14-band equalizer: +/- 12 dB, 25 Hz-10 kHz
Output level: Patch output: 100Ω/-78 dBu ➔ -10 dBu (1 uV ➔ 250 mV)
Tape output: 600Ω/ -14 dBu (150 mV)
PA output: 2 x 30 W or bridged 1 x 50 W (8Ω/100 V)
LA output: 4 A RMS, continuous 16 A peak (125 ms) 65 V RMS
Power consumption Basis model: Medium output: 140 W Maximum output: 330 W
With PA module: Medium output: 190 W Maximum output: 450 W
Afmetingen :HxB 82 mmX 47mm
Gewicht: Basis model: 9.5 kg 2 x 100 V transformers: 1.15 kg 3 x balanced XLR input module: 0.25 kg 2 x WTU module: 0.50 kg color Black
Winkelprijs ca 450 euro (niet meer leverbaar)
De Logia mag weg voor minimaal 40 euro
Ps ,versturen is dubbel tarief gezien het gewicht a 11 kg dus pakket 20 kg! a 13 euro!
...
...
...
...
...
...
...
...
...
...
...
...
