Te Koop,

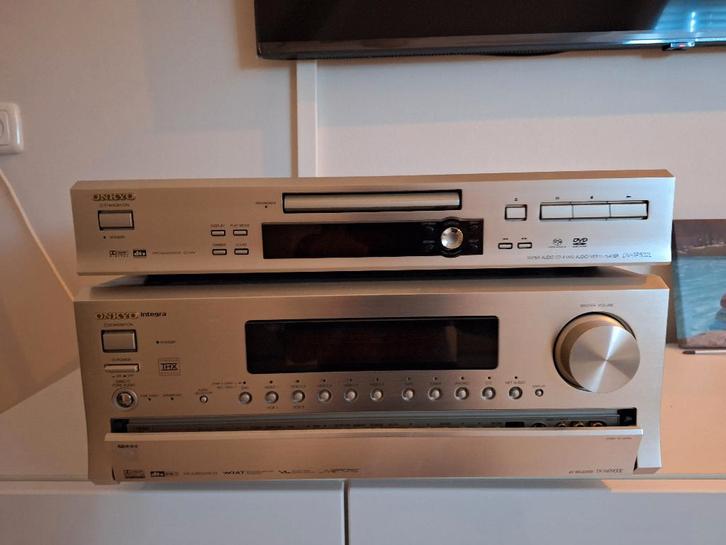

Een goede Receiver en DVD speler van Onkyo.
De voorklep sluit niet meer.
Achterop zou de antenne aansluiting gesoldeerd moeten worden.
De radio werkt gewoon en de versterker werkt ook gewoon nog goed.
Heb helaas geen 220 Volt netsnoer meer.


Specifications
AMPLIFIER SECTION
Continuous average power output (FTC)
All channels: 110 W per channel min. RMS at 8
Ω, 2 channels driven from 20 Hz to
20 kHz with no more than 0.08%
total harmonic distortion.
145 W min. RMS at 6 Ω, 2 channels
driven from 1 kHz with no more
than 0.1% total harmonic
distortion.
Continuous power output (DIN) 150 W at 6 Ω
Maximum power output (EIAJ) 180 W at 6 Ω
Dynamic power output (stereo) 2 × 280 W at 3 Ω
2 × 220 W at 4 Ω
2 × 140 W at 8 Ω
Total Harmonic Distortion: 0.08% at rated power
0.08% at 1 W output
IM Distortion: 0.08% at rated power
0.08% at 1 W output
Damping factor: 60 at 8 Ω
Input sensitivity and impedance
PHONO: 2.5 mV, 50 kΩ
LINE (CD, TAPE, DVD,
VIDEO 1-5): 200 mV, 50 kΩ
MULTICHANNEL INPUT
(FRONT L/C/R, SURROUND
L/R, SURROUND BACK L/R): 200 mV, 50 kΩ
(SUBWOOFER): 36 mV, 50 kΩ
COAXIAL 1, 2, 3 (DIGITAL): 0.5 Vp-p, 75 Ω
DVD, VIDEO 1, 2, 3, 4, 5: 1 Vp-p, 75 Ω
1 Vp-p, 75 Ω (Y)
0.28 Vp-p, 75 Ω (C)
COMPONENT VIDEO 1, 2: 1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Output level and impedance
Rec out (TAPE, VIDEO 1, 2):
200 mV, 470 Ω
Pre out: 1 V, 470 Ω
ZONE 2 OUT: 100 mV, 470 Ω
VIDEO (VIDEO 1, 2, MONITOR
OUT, ZONE 2 OUT): 1 Vp-p, 75 Ω
S-VIDEO (VIDEO 1, 2,
MONITOR OUT): 1 Vp-p, 75 Ω (Y)
0.28 p-p, 75 Ω (C)
COMPONENT VIDEO OUT: 1 Vp-p, 75 Ω (Y)
0.7 Vp-p, 75 Ω (PB, PR)
Phono overload:
120 mV RMS at 1 kHz, 0.5% T.H.D.
Frequency response: 10 Hz to 100 kHz : +1/–3 dB
(CD in Direct mode)
RIAA deviation: 20 Hz to 20 kHz : ±0.8 dB
Tone Control
Bass: ±10 dB at 50 Hz
Treble: ±10 dB at 20,000 Hz
Signal-to-noise ratio (direct)
Phono: 80 dB (IHF A, 5 mV input)
CD/Tape: 110 dB (IHF A, 0.5 V input)

De Receiver werkt gewoon goed.
