Versterker

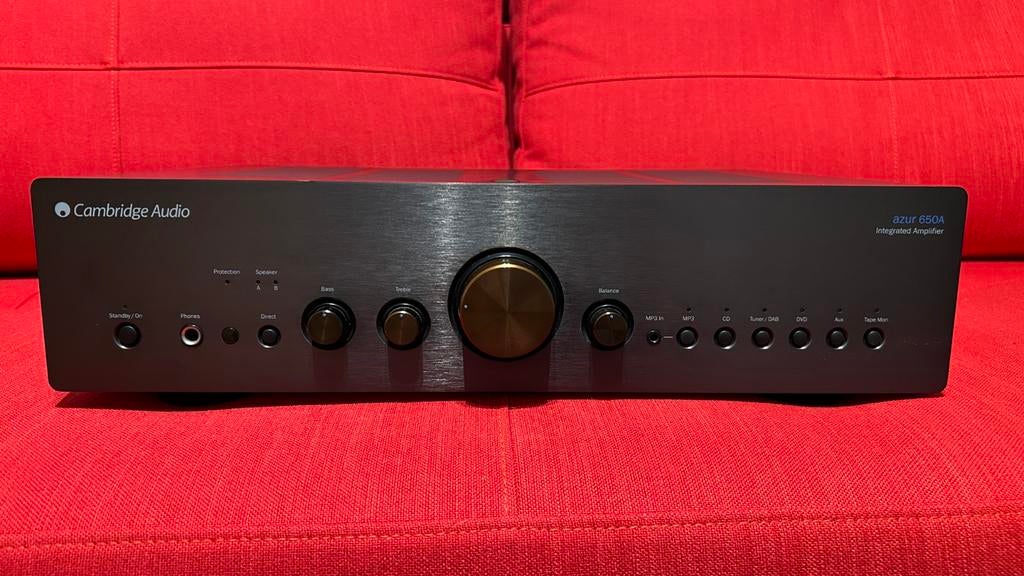

Cambridge Audio Azur 650A Integrated Amplifier

• Audiophile grade oversize transformer and substantial extruded heatsink allowing 2 x 75 Watts RMS into 8 ohms
• 6 inputs, 2 outputs and Tape In
• Separate transformers for left and right channels, twin rectifiers and separate PSUs for dual mono operation of the left and right power amps
• Revised output stage using new Sanken output transistors with emitter resistors for reduced thermal modulation and increased current delivery
• New Alps film type ‘black box’ volume pot for improved low level channel balance and stereo imaging
• Fully updated and re-tuned CAP5 protection technology to enhance performance at high volumes
• New low dissipation polypropylene signal capacitors and custom made electrolytic capacitors in critical positions
• EnergyStar certified ultra low power (<1W) standby circuit
• Brand new wrap-around casework design with substantially thicker brushes aluminium front panel
• Front mounted 3.5mm iPod/MP3 player connection


Detailed Specifications


Power Output
75 watts (into 8 ohms)

THD (unweighted)
<0.002% @1kHz, 80% of rated power
<0.03% 20Hz – 20kHz, 80% of rated power
<0.02% 20Hz – 20kHz @10W

Frequency Response (-1dB)
5Hz – 50kHz

S/N ratio (ref 1w) unweighted)
92dB

Input impedances
47kohms

Power amp damping factor
100

Max. Power consumption
600W

Standby power consumption
<1W (rated mains)

Bass/Treble controls
Shelving, ultimate boost cut: +/-7.5dB @20Hz – 20kHz

Dimensions (HxWxD)
120 x 430 x 350mm (4.7 x 16.9 x 13.8")

Weight
8.4kg (18.5lbs)
