In perfecte staat zowel technisch als optisch. AB aanwezig. Originele doos en omdoos in nieuwstaat.
Eerste eigenaar.

Bieden vanaf €2449,-

Specifications

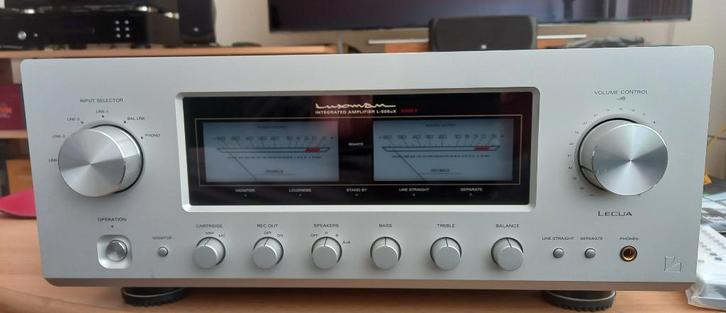

・Brand / Model: LUXMAN L-505UX Mark II
・Type: Integrated Amplifier
・Country of Manufacture: Japan

・Rated Output: 100W + 100W (8Ω), 150W + 150W (4Ω)
・Input Sensitivity / Input Impedance:
　・PHONO (MM): 2.5mV / 47kΩ
　・PHONO (MC): 0.3mV / 100Ω
　・LINE: 180mV / 47kΩ
　・BAL.LINE: 180mV / 55kΩ
　・MAIN-IN: 1V / 47kΩ
・Output Voltage:
　・REC OUT: 180mV
　・PRE OUT: 1V
・Frequency Response:
　・PHONO: 20Hz–20kHz (within -3.0dB)
　・LINE: 20Hz–100kHz (within -3.0dB)
・Total Harmonic Distortion (THD):
　・0.009% or less (8Ω, 1kHz)
　・0.09% or less (8Ω, 20Hz–20kHz)
・Signal-to-Noise Ratio (S/N, IHF-A weighted):
　・PHONO (MM): 91dB or more
　・PHONO (MC): 75dB or more
　・LINE: 104dB or more
・Volume Control: LECUA
・Amplification Circuit: ODNF 4.0
・Output Stage: Bipolar parallel push-pull
・Power Transformer: EI type 540VA
・Damping Factor: 210
・Tone Control Maximum Adjustment:
　・BASS: ±8dB at 100Hz
　・TREBLE: ±8dB at 10kHz
・Power Supply Voltage: AC 100V (50 / 60Hz)
・Power Consumption:
　・270W (according to Electrical Appliance and Material Safety Law)
　・85W (no signal)
　・0.4W (standby)
・Dimensions: 440 (W) × 178 (H) × 454 (D) mm
　(Depth includes 20mm for front knobs and 27mm for rear terminals)
・Weight: 23 kg
