Beschrijving

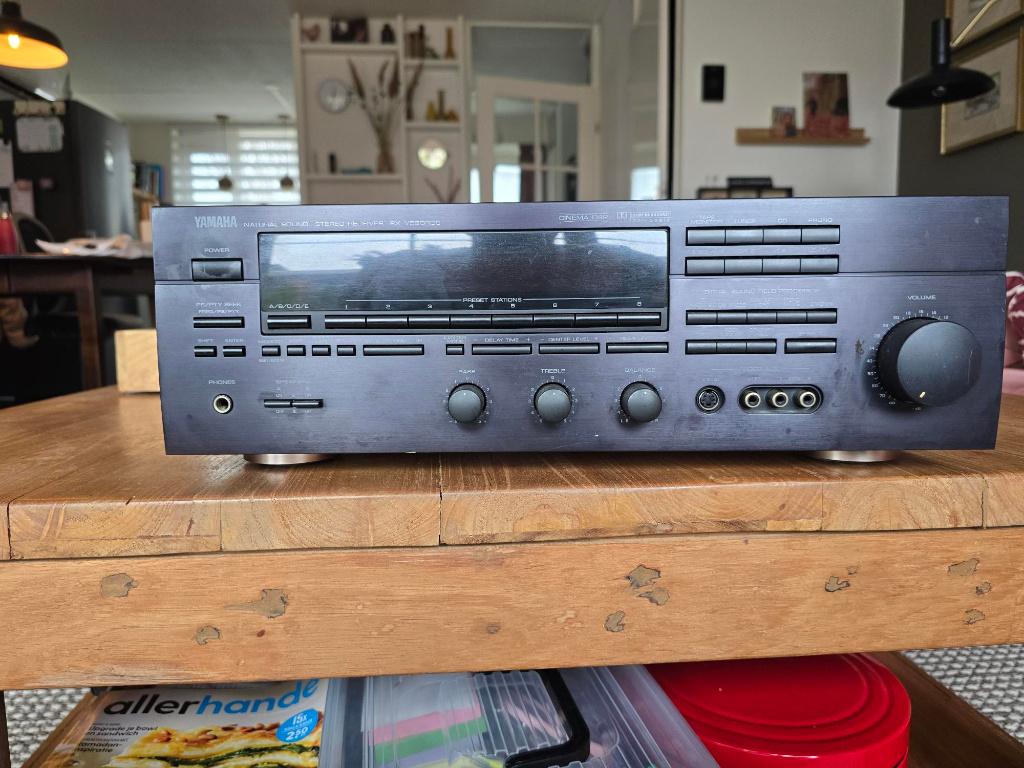

• Manufacturer: Yamaha
• Model: RX-V590RDS
• Years of Manufacture:'
• Made in'
• Color: black
• Remote control: YES
• Power consumption: 300Watt
• Dimensions:(WxHxD): 435 x 146 x 386mm
• Weight: 10,0Kg (net)
• New price approx.: /

Connections: Number of audio inputs:7'

• Phono IN
• CD IN
• Tape IN
• LD/TV IN
• VCR 1 IN
• VCR 2 IN
• AUX IN (Front)

Number of Video Inputs:6' S-Video:

• S-Video IN
• S-Video AUX IN (Front)

Cinch:

• LD/TV IN
• VCR 1 IN
• VCR 2 IN
• AUX IN (Front)

Number of Audio Outputs:4'

• Tape REC
• VCR 1 OUT
• VCR 2 OUT
• Headphone output

Number of video outputs:5' S-Video:

• Monitor OUT
• VCR 2 OUT

Cinch:

• Monitor OUT
• VCR 1 OUT
• VCR 2 OUT

Loudspeaker outputs:

• Rear L/R
• Center (Single or Dual)
• Speaker A L/R

Speaker B L/R
Output:

• Front L/R (RCA)
• Center
• LOW Pass (fc:200Hz)
• Rear L/R (Cinch)

Other Inputs:

• FM antenna (75 Ohm)
• AM antenna
• GND
• Front AV (AUX)

Technical Specifications 5 Speaker System Front:

• 2x70W (8Ohm) RMS output power.
• Total harmonic distortion 0.04%, 1 kHz

Center:

• 70W (8Ohm) RMS output power
• Total harmonic distortion 0.07%, 1 kHz

Rear:

• 2x20W (8Ohm) RMS output power.
• Total harmonic distortion 0.3%, 1 kHz

Digital Sound Field Processor

• 6 programs for digital sound field processing
• 2 programs for Dolby Surround (DOLBY PRO LOGIC ENHANCED)

• Automatic input balance control for Dolby Sourround
• Test tone generator for easy speaker balance adjustment
• 3 Mid-Channel Modes (NORMAL/WIDE/PHANTOM)
• Multi-functions for RDS reception
• Preset tuning of 40 stations
• Automatic station preset
• Memory change function (Memory edit)
• IF Direct PLL Synthesizer Tuning
• Video Signal Input/Output Capability (including S-Video Connections)
• Sleep timer
