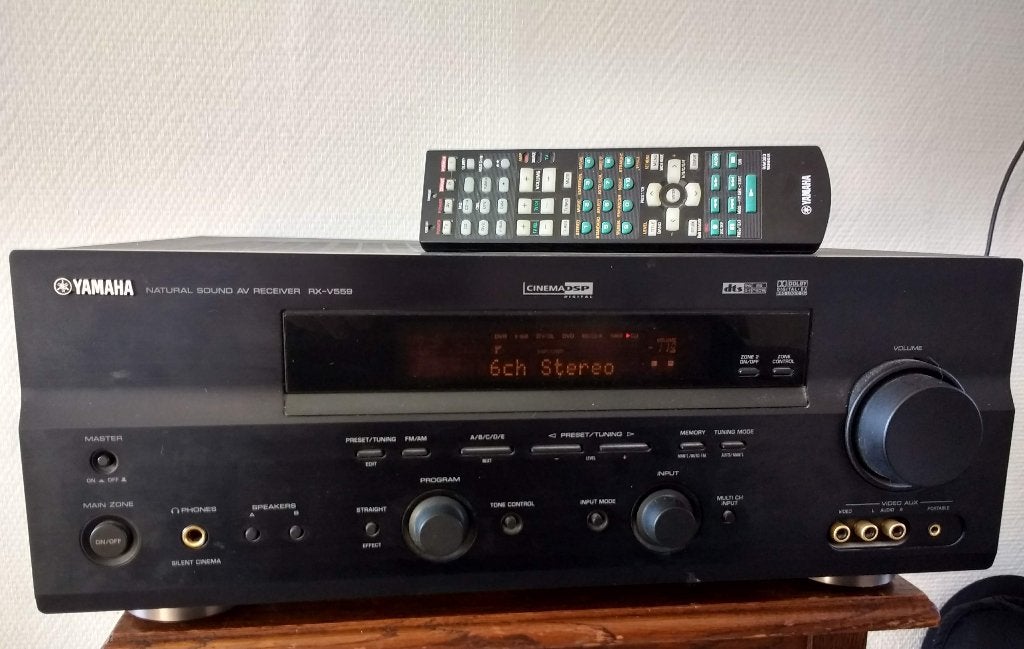

Home Cinema Receiver

High performance receiver offering a wide range of entertainment possibilities including CINEMA DSP for realistic movie sound and iPod compatibility via the optional Yamaha YDS-10.

Compressed Music Enhancer
Compatible with iPod via optional Yamaha YDS-10
ront panel mini jack for portable player connection
On-screen display

Digital ToP-ART
Dolby Pro-Logic, Dolby Pro-Logic II, Dolby Pro-Logic IIx
Dolby-Digital, Dolby Digital EX,
DTS Neo:6, DTS Digital Surround
DTS-ES, DTS-ES Discrete, DTS 96/24
SILENT CINEMA
Virtual CINEMA DSP
Quad-Field CINEMA DSP
DSP-Programs: 14
Surround Programs: 14
192 kHz/24-Bit-D/A-Convertor: Burr Brown
Audio Delay
MultiRoom Function: –
Night Listening Enhancer
Processor Direct Switch: Direct Stereo
Compressed Music Enhancer
Audio Mute: Full, -20dB
Center GEQ: 5 band
Component Video Terminals (in/out): 3 x in, 1 out
Output: 1 optical, 1 x analog, 1 x subwoofer
Speaker Selector: A, B, A+B
Subwoofer Uitgang
6-Kanaal Externe Decoder Ingang
Front Panel Input Terminal: 1 x composite, 1 x audio, 1 x 3,5mm stereo in
Inputs: 2x audio, 4x A/V, 2x optical and 1x coaxial digital
On-Screen Display
Video Conversion: Composite video <-> S-video -> Komponent video
Auto Preset Afstemming
DIN Norm Uitgangsvermogen (4 ohm, 1kHz, 0,7% THV): 6 x 145 W
Standard Power (8 ohms, 20-20.000Hz): 6 x 14 0 W
Lineaire Demping
Dempings Factor (8 ohm, 20–20.000 Hz): 120
Frequentiebreik: 10 Hz—100 kHz +0, -3 dB
Signaal/Ruis-Afstand (CD): 100 dB
Totale Harmonische Vervorming: 0,06%
Crossover Frequency: 40, 60,80, 90, 100, 110, 120, 160 and 200 Hz.
RDS ( Radio-Data-System)
Preset Station Memory: 40
FM selectiviteit: 70 dB
FM signaal/ruis-afstand: 76dB mono
FM bruikbare gevoeligheid: 1,0µV
