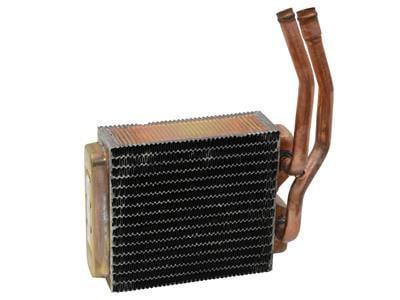

68-77 COPPER / BRASS HEATER CORE WITH AIR CONDITIONING

Replace that old heater core before it leaks and ruins your expensive carpet set! Corvette Central suggests you order a heater gasket kit at the same time.


Questions: Is this Heater Core Copper or Brass?

Answer: Yes, both.

The formed tanks, channels, and tubes on this 1968-1977 Corvette Heater Core are brass. The water channels and air fins are roll formed from a copper ribbon. The assembly is held together with a flux and solder dipping process to prevent leakage.


This C3 Corvette heater core measures 8 1/2" overall lenght, end tank to end tank. The center core measures 7 1/2" wide x 6 1/2" tall









GM Item No.3015145 52484060 ()Paragon Item No.5770Base Unit of MeasureEANet Weight3.8Car Years 11968 1969 1970 1971 () 1972 1973 1974 1975 () 1976 1977 Part #453020Search DescriptionC3 CORVETTE AIR CONDITIONING A/C DASH CORES
