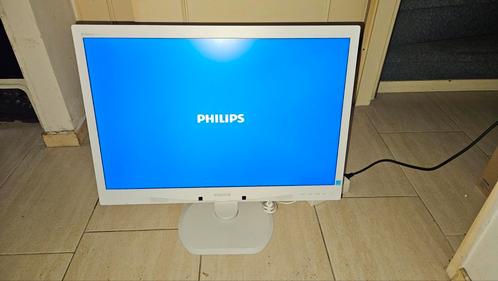

Philips C240P4Q medische monitor

Kantelbaar, scherp. Ziekenhuis kwaliteit!

Technical Specifications
Picture/Display

Panel Size
24 inch / 61 cm
Aspect ratio
16:10
LCD panel type
IPS technology
Backlight type
W-LED system
Pixel pitch
0.270 x 0.270 mm
Optimum resolution
1920 x 1200 @ 60Hz
Brightness
300 cd/m²
DICOM calibrated brightness
265 cd/m²
Display colors
16.7 M
Contrast ratio (typical)
1,000:1
Response time (typical)
14 ms
Viewing angle
178º (H) / 178º (V)
@ C/R > 10
Picture enhancement
SmartImage Clinic
Effective viewing area
518.4 (H) x 324 (V)
Scanning Frequency
24 - 94 kHz (H) / 48 - 85 Hz (V)
sRGB
Yes
DICOM
Clinical D-image
DICOM part-14
Connectivity

Signal Input
DisplayPort 1.2
DVI-D (digital, HDCP)
VGA (Analog )
USB
USB 2.0 x 4
Sync Input
Sync on Green
Separate Sync
Audio (In/Out)
PC audio-in
Headphone out
Built-in speakers
2Wx2
Convenience

Plug & Play Compatibility
DDC/CI
Mac OS X
sRGB
Windows 8.1 / 8 / 7
User convenience
SmartImage Clinic
PowerSensor
Menu
Power On/Off
4:3 / Wide
OSD Languages
English
French
German
Italian
Portuguese
Russian
Simplified Chinese
Spanish
Brazil Portuguese
Czech
Dutch
Finnish
Greek
Hungarian
Japanese
Korean
Polish
Swedish
Traditional Chinese
Turkish
Ukrainian
Other convenience
Kensington lock
VESA mount (100x100mm)
Control software
SmartControl
Stand

Height adjustment
130 mm
Pivot
90 degree
Swivel
-65/65 degree
Tilt
-5/20 degree
Power

Off mode
Zero watts with Zero switch
On mode
31.4 W (typ.)
Standby mode
0.5 W (typ.)
Power LED indicator
Operation - White
Standby mode- White (blinking)
External power supply
100-240VAC, 50-60Hz (Medical cert.: IEC60601-1 / EN60601-1)
Dimensions

Packaging in mm (WxHxD)
632 x 457 x 286 mm
Product without stand (mm)
555 x 388 x 65 mm
Product with stand(max height)
555 x 550 x 244 mm
Weight

Product with packaging (kg)
9.80 kg
Product with stand (kg)
6.97 kg
Product without stand (kg)
4.64 kg
Operating conditions

Altitude
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation)
0°C to 40°C °C
MTBF
30,000 hour(s)
Relative humidity
20%-80 %
Temperature range (storage)
-20°C to 60°C °C
Sustainability

Environmental and energy
PowerSensor
RoHS
WEEE
Recyclable packaging material
100 %
Specific Substances
PVC / BFR free housing
Mercury free
Compliance and standards

EMC
IEC/EN60601-1-2
CE Mark
Ergonomic/Others
JIS Z2801
TUV/GS
TUV Ergo
ISO 13485 certified
CCC
CECP
RCM
UL/cUL
TCO certified
Safety
IEC/EN60601-1
CE Mark
Cabinet

Finish
Texture
Foot
White
Front bezel
White
Rear cover
White
