Een Mikrotik Routerboard Wifi Router Switch met SFP, Gigabit, POE en FastEthernet poortjes.

Zeer geavanceerde apparaat met vele functies van Mikrotik.

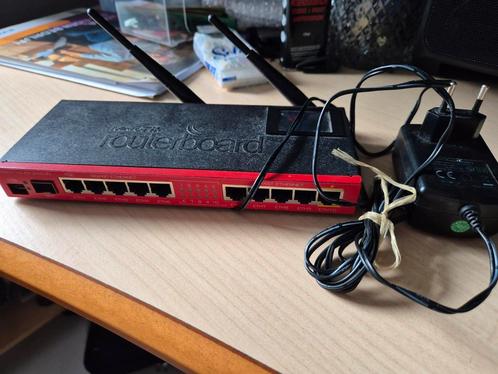

Mikrotik RB2011UiAS-2HnD-IN Wifi Router met Switch

Deze heb ik jaartje gebruikt, wegens overstap naar andere provider waar router bij zat is deze niet meer nodig.
Ligt al een jaar in de kast. Zonde om te laten liggen.


Specifications

Product code RB2011UiAS-2HnD-IN

Architecture MIPSBE

CPU AR9344

CPU core count 1

CPU nominal frequency 600 MHz

Switch chip model AR8327

Dimensions 214mm x 86mm for PCB

RouterOS license 5

Operating System RouterOS

Size of RAM 128 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 60°C

Suggested price $129.00

Wireless capabilities

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5

Fiber

SFP DDMI Yes
SFP ports 1

Peripherals

Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 11 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

PoE-out

PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 510 mA
Max total out (A) 510 mA

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -96
11MBit/s 28 -80
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -92
MCS7 25 -73
