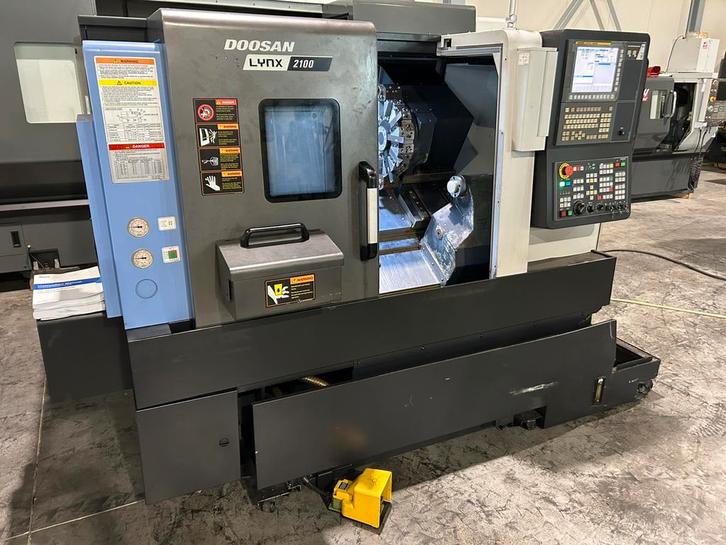

Mooie 2019 Doosan Lynx 2100. Machine verkeerd in goede conditie en is per direct beschikbaar en geheel operationeel te bezichtigen bij ons in de showroom.

Video link: https:youtu.be/A_X7XNJBKTA?si=rxdvdgKLakvNmZw3

Levering, plaatsing en inbedrijfstelling in overleg.

Prijs op aanvraag (ex btw)

Voor video’s en of meer informatie neem contact op met +31638290829


Control: Fanuc i Series
Hours: 6234

Swing over bed: 600mm
Swing over saddle: 400mm
Max. Turning diameter: 210mm
Max. Turning length: 330mm
Bar working diameter: 65mm

Spindle:

Chuck: Hainbuch Spanntop mini Anzug 65
Spindle speed: 4500rpm
Spindle nose: ASA A2#6
Spindle bearing diameter: 110mm
Spindle through hole diameter: 76mm

 Turret:

No. of tool stations: 12
OD tool size: 25mm
Boring bar diameter: 40mm
Indexing time: 0.15 sec

Carriage:

X-axis: 205mm
Z-axis: 340mm
Rapid traverse X-axis: 30m/min
Rapid traverse Z-axis: 36m/min

Tailstock:

Quill diameter: 80mm
Quill bore taper: MT#4
Quill travel: 360mm

Motors:

Main spindle motor: 15/11kW
Feed motor (X, Z-axis): 1,8kW

Power source:

Rated capacity: 24,21 kVa


Machine dimensions:

Machine length: 2350mm
Machine width: 1582mm
Machine height: 1693mm
Machine weight: 2750kg


Equipped with:

- EZ Guide
- Doosan tool load monitoring
- Ethernet function
- Part program storage 1280M(512kb)
- Bar feeder interface
- Automatic tool pre-setter
- CNC tailstock
- 128 tool offsets
- Part catcher
