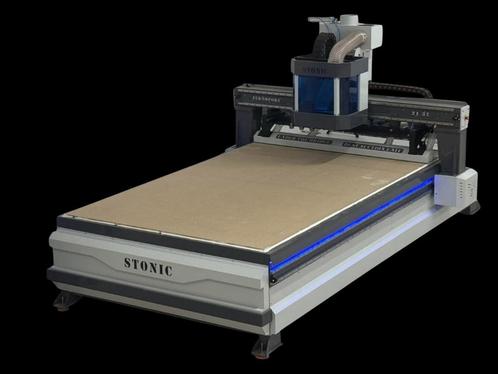

STONIC VEGA 2136 FEATURES
X-Axis: One 1.5 kW Delta Servo Motor
Y-Axis: Two 1.5 kW Delta Geared Servo Motors
Z-Axis: One 1.0 kW Braked Servo Motor
Movement Axis (Linear): Hiwin 30-mm rails on the X and Y axes, and 30-mm steel rack and pinion on the Z axis
Spindle Motor: 9 kW Hiteco Tool Changer
Cutting Motor Speed: 24,000 rpm
Control: Industrial Control (Electrical and Electronic Panel)
Control Unit: Next-Generation Control Software with EtherCat Communication
Stop & Switch: All Axis Equipped with Emergency Stop Buttons
Table: Aluminum Table
Chassis: Steel Construction, Laser Cutting and Plasma
Accuracy: True Borwerg Rail System Accuracy
Vacuum: Local Solenoid-Controlled Valve (250 Cubic Meters Dry Type) (VPS)
Tool Changing: 12 Under-Bridge Tool Changers
Automatic Unloading and Sweeping: Included
Automatic Z Probe Tool Length Measurement: Included
Backing Piston: Included
Automatic Lubrication Unit: Included
Dust Extractor: Pneumatic Bellows Dust Extraction Device
Servo Motor: Included
Net Weight: 3500 kg
X-Axis: One 1.5 kW Delta Servo Motor
Y-Axis: Two 1.5 kW Delta Geared Servo Motors
Z-Axis: One 1.0 kW Braked Servo Motor
Movement Axis (Linear): Hiwin 30-mm rails on the X and Y axes, and 30-mm steel rack and pinion on the Z axis
Spindle Motor: 9 kW Hiteco Tool Changer
Cutting Motor Speed: 24,000 rpm
Control: Industrial Control (Electrical and Electronic Panel)
Control Unit: Next-Generation Control Software with EtherCat Communication
Stop & Switch: All Axis Equipped with Emergency Stop Buttons
Table: Aluminum Table
Chassis: Steel Construction, Laser Cutting and Plasma
Accuracy: True Borwerg Rail System Accuracy
Vacuum: Local Solenoid-Controlled Valve (250 Cubic Meters Dry Type) (VPS)
Tool Changing: 12 Under-Bridge Tool Changers
Automatic Unloading and Sweeping: Included
Automatic Z Probe Tool Length Measurement: Included
Backing Piston: Included
Automatic Lubrication Unit: Included
Dust Extractor: Pneumatic Bellows Dust Extraction Device
Servo Motor: Included
Net Weight: 3500 kg
...
...
...
...
...
...
...
...
...
...
...
...
