Laser Kit 10W and Mounting

Specification:

• Material: aluminum alloy
• Optical Power: 10W (±1W)
• Wavelength: 450nm (±10nm)
• Light color: blue
• Focus Length: 45mm
• Spot form: Punctiform, fixed focus
• Electric power: 24V 1.7A(1.5A-2A)
• PWM Modulation: 0/5-12V 0-5kHz TTL/PWM
• Input port: XH2.54-3P socket
• Laser size: 40*40*147mm
• Module weight: 250g

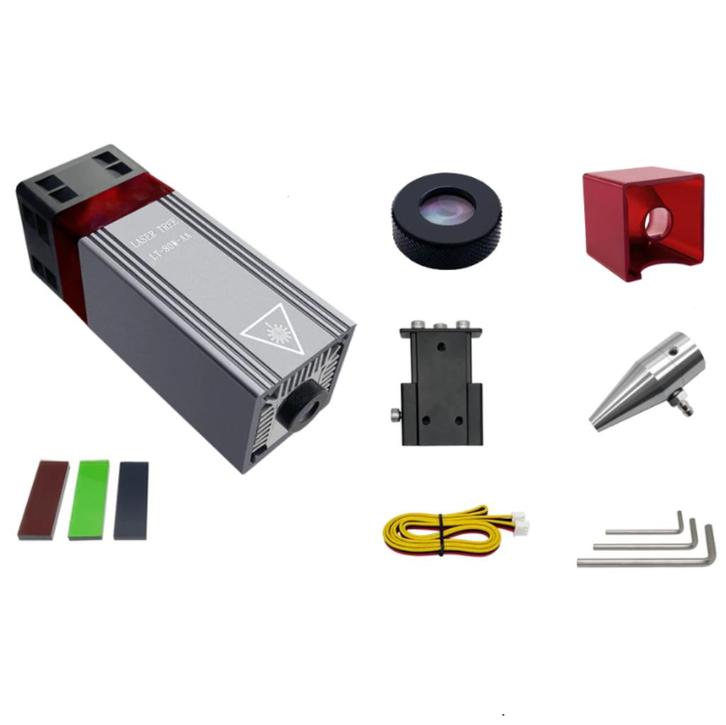

Included:

• Laser Module 10W
• Protective window glass
• Eye protection cover
• Sliding plate (mounting)
• Air assist nozzle
• Input cable
• Focus fixing plate 3x
• Wrench 3x

Product Description:

• Directly engrave mirror stainless steel: no need painting black;
• Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s;
• Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.
• Strong compatibility Suitable for various types of laser cutting machines and engraving machines.
• Applicable materials Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc. Features:

• Blue laser module—a professional laser head with high speed and high stability.
• Fixed focus laser head—suitable for three-axis engraving machine, easy to install.
• Air-assist— Blowing through the air nozzle, which will reduces burn marks and improves cutting performance Form 1: with the air assist nozzle. The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assist system will blow air through the air nozzle. That will greatly reduce burned marks and bring you excellent cutting experience.To make full use of the air assist, it is recommended to buy together with the air pump.Recommended Air Tubing inner diameter: Φ2.5-3 mm

Recommended air pump pressure: 150kPa
Form 2：with the laser protective cover. When engraving with this laser head, please use this protective cover that can effectively filter blue light. For convenience, you can engrave without wearing laser goggles.
