Supported linear rail kit
€ 93,00
Kenmerken
Conditie
Zo goed als nieuw
Beschrijving

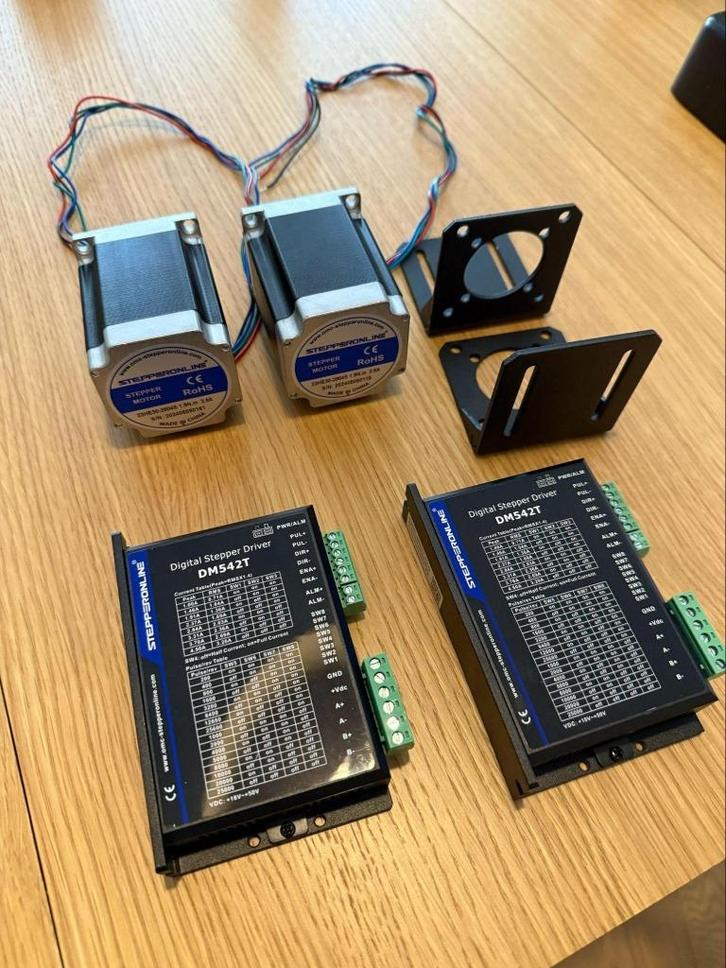

Two NEMA 23 stepper motors with matching mounting brackets.
Model: 23HE30-2804S, 2.8 A, 1.8° step angle, 4-lead bipolar wiring.
Drivers: DM542T digital stepper drivers, microstepping up to 1/128.
Condition: Tested and functional.
E Series Nema 23 Bipolar 1.8deg 2.0Nm(283.22oz.in) 2.8A 57x57x76mm 4 Wires
new for €14.36 each on omc-stepperonline
Electrical Specification
Manufacturer Part Number: 23HE30-2804SNumber Of Phase: 2Step Angle: 1.8degHolding Torque: 2.0Nm(283.22oz.in)Rated Current/phase: 2.8APhase Resistance: 1.17ohms± 10%Inductance: 4.8mH±20%(1KHz)Insulation Class: B 130°C[266°F]
Physical Specification
Frame Size: 57 x 57mmBody Length: 76mmShaft Diameter: Φ6.35mmShaft Length: 21mmD-CUT Shaft Length: 15mmNumber of Leads: 4Lead Length: 500mm
Model: 23HE30-2804S, 2.8 A, 1.8° step angle, 4-lead bipolar wiring.
Drivers: DM542T digital stepper drivers, microstepping up to 1/128.
Condition: Tested and functional.
E Series Nema 23 Bipolar 1.8deg 2.0Nm(283.22oz.in) 2.8A 57x57x76mm 4 Wires
new for €14.36 each on omc-stepperonline
Electrical Specification
Manufacturer Part Number: 23HE30-2804SNumber Of Phase: 2Step Angle: 1.8degHolding Torque: 2.0Nm(283.22oz.in)Rated Current/phase: 2.8APhase Resistance: 1.17ohms± 10%Inductance: 4.8mH±20%(1KHz)Insulation Class: B 130°C[266°F]
Physical Specification
Frame Size: 57 x 57mmBody Length: 76mmShaft Diameter: Φ6.35mmShaft Length: 21mmD-CUT Shaft Length: 15mmNumber of Leads: 4Lead Length: 500mm
...
...
...
...
...
...
...
...
...
...
...
...
Haarlem
40x bekeken
3x bewaard
Sinds 3 nov '25
Advertentienummer: m2329690875
