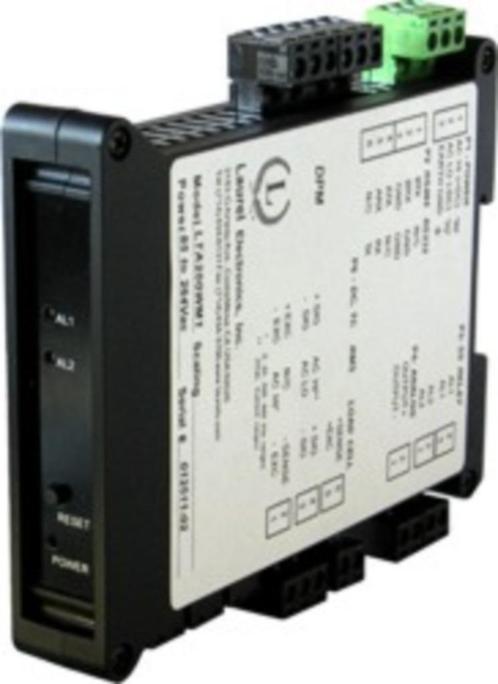

Laurel electronics Thermokoppel transmitter

Laurel type TM2001KF


The Laureate thermocouple transmitter provides a linearized,
highly accurate, stable and repeatable transmitter output for
thermocouple types J, K, T, E, N, R or S. The thermocouple type
and temperature range, specified in °C or °F, are user-selectable.
The temperature range can be as wide as the entire span of the
thermocouple type, or as narrow as 150 counts (such as 15.0°),
limited only by considerations of electrical noise and digital
filtering time constants.

Features
• 4-20 mA, 0-20 mA, 0-10V or -10V to +10V transmitter output, 16 bits, isolated
• RS232 or RS485 serial data output, Modbus or Laurel ASCII protocol, isolated
• Dual 120 mA solid state relays for alarm or control, isolated
• Factory calibrated for thermocouple types J, K, T, E, N, R, S in one range
• User selectable input span from entire thermocouple range down to 15.0°
• Output update rate to 60/sec
• Analog output resolution 0.0015% of span (16 bits), accuracy ±0.02% of span
• 5V, 10V or 24V dc transducer excitation output, isolated
• Universal 85-264 Vac / 90-300 Vdc or 10-48 Vdc / 12-32 Vac power
• DIN rail mount housing only 22.5 mm wide, detachable screw-clamp connectors
