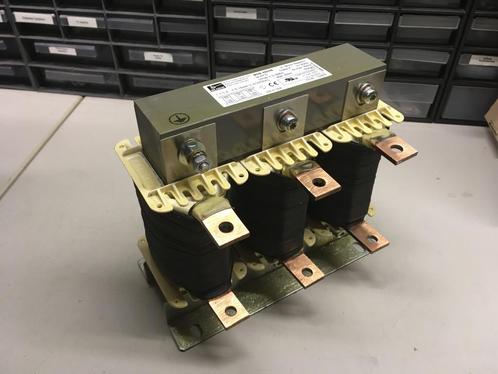

Motorfilter Sinusfilter Block MDB 400/46

Nieuw in Originele verpakking

Merk: Block
Type: MDB 400/46.

Output frequency: 0-120hz.
Max switch frequency: 6khz
Nominale stroom 46 Ampere


Technical Data
• Product Motor reactor
• Order number MDB 400/46
• Inductance 3x 0.15 mH
• Rated current 3x 46 Aac
• Linear current 3x 92 Aac
• Rated voltage range 0 V to 690 V
• Rated voltage 400 V
• Frequency range to 120 Hz
• Motor or converter power 22 kW / 29.5 HP
• EN insulation classF (155°C)
• UL Insulation class class 155
• Duty Cycle100 %
• Wire material Copper


trefwoorden: motorfilter,sinusfilter, smoorspoel, filter, spoel, reactor.
