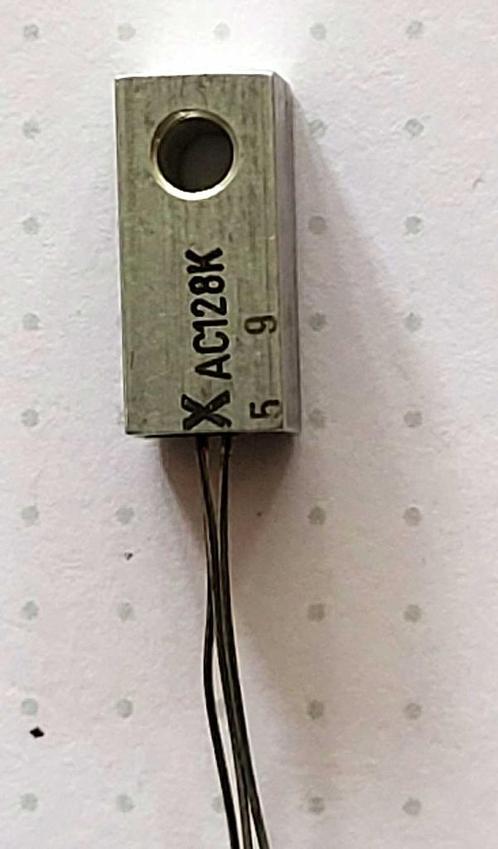

AC128K vintage germanium PNP transistor

High Gain germanium P-N-P transistor
merk : Philips
Type Designator: AC128K
Material of Transistor: Ge
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 32 V
Maximum Collector-Emitter Voltage |Vce|: 16 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 100 °C
Transition Frequency (ft): 1 MHz
Collector Capacitance (Cc): 60 pF
Forward Current Transfer Ratio (hFE) = 77 (gemeten op dit part)
Package: X04

1 exemplaar beschikbaar, getest op whiskers en gemeten hfe = 77
