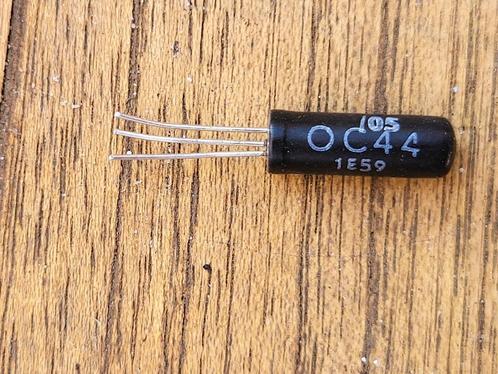

OC44 vintage transistor

The OC44 is a PNP germanium transistor used for RF applications with an fT of 8 MHz. It was aimed at low RF frequencies and was used in a variety of transistor radios in the RF sections of the circuit.

• Type Designator: OC44 (NOS)
• Material of Transistor: Ge
• Polarity: PNP
• Maximum Collector Power Dissipation (Pc): 0.083 W
• Maximum Collector-Base Voltage |Vcb|: 15 V
• Maximum Collector-Emitter Voltage |Vce|: 12 V
• Maximum Emitter-Base Voltage |Veb|: 12 V
• Maximum Collector Current |Ic max|: 0.01 A
• Max. Operating Junction Temperature (Tj): 80 °C
• Transition Frequency (ft): 8 MHz
• Collector Capacitance (Cc): 12 pF
• Forward Current Transfer Ratio (hFE) 150..250
• Noise Figure, dB: -
• Package: X01

meerdere stuks beschikbaar, prijs per stuk, 5 voor 10 Euro
