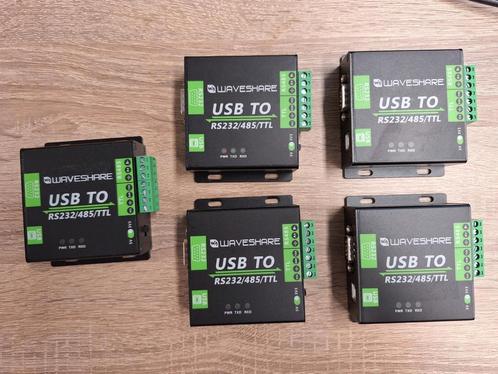

5x Waveshare USB to RS323/485/TTL

Wegens bedrijfsliquidatie bieden we 5x Waveshare USB to RS232/485/TTL aan. Deze zijn net iets ouder dan een jaar, gebruikt maar in goede staat. Totale nieuwkoop waarde van 150 euro. Specificaties

• PRODUCT TYPE Industrial grade digital isolated converter
• USB Operating voltage 5V
• Connector USB-B
• Protection 200mA self-recovery fuse, isolated output
• RS232 Connector DB9 male
• Protection TVS diode, surge protection & ESD protection
• Transmission mode Point-to-point
• Baud rate FT232RNL: 300bps ~ 921600 bps
• CH343G: up to 600000 bps (not full band)
• RS485 Connector Screw terminal
• Pins A+/B-/GND
• Direction control Hardware automatically discriminates and controls the direction of data transmission
• Protection 600W lightningproof and surge-suppress, 15KV
• ESD protection (reserved 120R balancing resistor solder pads
• Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• Baud rate FT232RNL: 300bps ~ 2 Mbps
• CH343G: up to 2 Mbps (not full band)
• TTL (UART) Operating voltage 3.3V / 5V
• Connector Screw terminal
• Pins TXD, RXD, GND, 5V
• Protection clamp protection diode, over-voltage/negative-voltage proof, shock proof
• Transmission mode Point-to-point
• Baud rate FT232RNL: 300 bps ~ 2 Mbps
• CH343G: up to 2 Mbps (not full band)
• Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
• TXD Green TX indicator, light up when the USB port sends data
• RXD Blue RX indicator, light up when the device ports send data back
• Operating environment Temperature -15℃ ~ 70℃, Humidity 5%RH ~ 95%RH
• Operating system Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Ophalen & Betalen

• Locatie: Delft
• Betaling: via bankafschrift bij afhalen
• Alleen ophalen; geen verzending
• Met factuur
