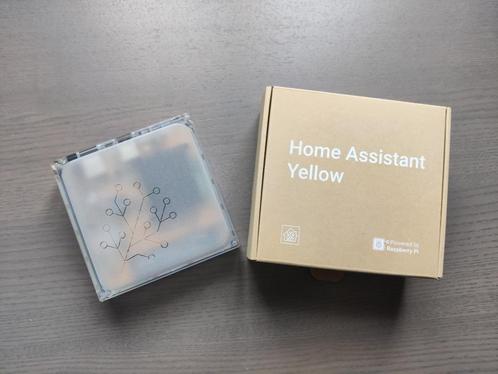

Nabu Casa Home Assistant Yellow Smart Hub PoE

Te koop:
Home Assistant Yellow Smart Hub PoE voorzien van

Compute Module 4 met 8GB RAM, 32GB eMMC en WIFI (CM4108032)

Samsung 980 500 GB PCIe 3.0 NVMe M.2 SSD (MZ-V8V500BW)xxxx

PoE input gevoed


Voorzien van laatste HAOS versie, dus klaar voor gebruik!

Gaat weg i.v.m. upgrade naar NUC PC

Configuratie:

Integrated smart-home wireless (Silicon Labs MGM210P Mighty Gecko Module)

Supports Zigbee 3.0, OpenThread, and Matter

2.4 GHz radio with TX power up to +20 dBm

1024 KB flash program memory, 96 KB RAM data memory

Pre-installed with Zigbee 3.0 firmware (EZSP), can be upgraded



Expansion slot for NVMe SSDs (M-Key)

Gigabit Ethernet

2 x USB 2.0 Type-A host port

1 x USB-C 2.0 device port (Silicon Labs CP2102N USBXpress USB bridge)

UART mode (default): debug USB-to-serial adapter

USB mode: CM4 USB 2.0 interface for USB recovery




High-quality stereo audio DAC

2 V RMS line-out on 3.5 mm audio jack

SNR 106 dB



2 x Push button

Red: Factory reset

Blue: To be determined



RTC backed by CR2032 battery

Status LEDs (can be powered off during regular operation)

Red: Power

Green: Disk usage

Yellow: Home Assistant system state



Power

Idle ~1.5 W

Idle with NVMe ~2.5 W

Load ~5-9 W



12 V / 2 A through barrel DC power jack (5.5 mm x 2.1 mm)

Ethernet: PoE+ IEEE 802.3at-2009 Class 3 or 4 (selectable via jumper)

Typical power usage



Enclosure

123 mm x 123 mm x 36 mm

Translucent injection-molded polycarbonate plastic

Tool-free assembly

Accommodates custom heat sink (included)
