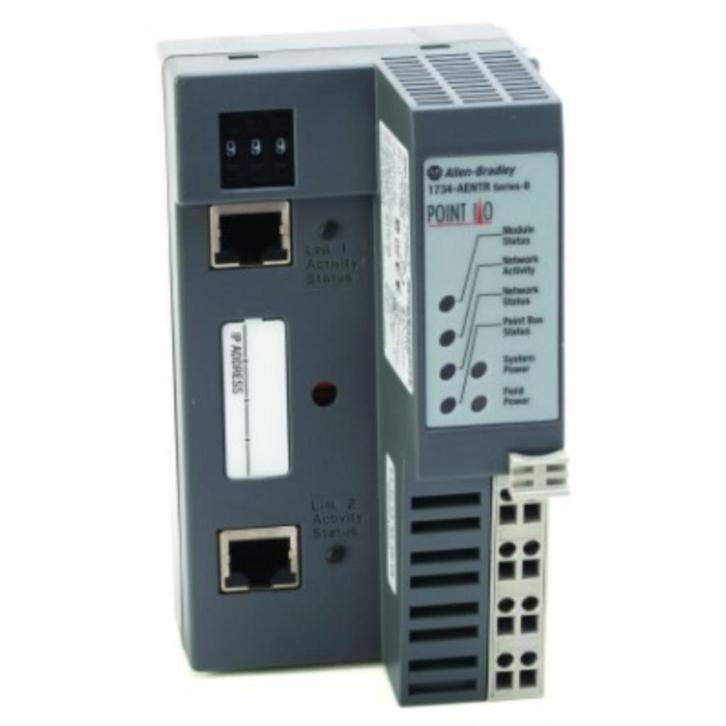

1734-AENTR Module locationStarter module – left side of the 1734 system
AttributeValueExpansion I/O capacity• 63 modules max
• 5 rack optimized connections (for digital modules only) max
• 20 direct connections max
• 1734-AENTR backplane current output = 0.8 A.
• Actual number of modules can vary.
• Add up current requirements of modules you want to use to make sure they do not exceed the amperage limit of 0.8 A for the 1734-AENTR adapter.
• Backplane current can be extended beyond 0.8 A by using 1734-EP24DC backplane extension power supplies.
• Add multiple 1734-EP24DC modules to reach the 63 module max.
1734-AENTR POINTBus current requirements• 75 mA (Catalog numbers 1734-IB2, 1734-IB4,
1734-IB8, 1734-IV2, 1734-OB2, 1734-OB4, 1734-OB8,
1734-OB2E, 1734-OB2EP, 1734-OB4E, 1734-OB8E,
1734-OV2E, 1734-OV4E, 1734-IE2C, 1734-OE2C,
1734-IE2V, 1734-OE2V, 1734-IA2, 1734-IM2,
1734-OA2, 1734-232ASC, 1734-485ASC)
• 80 mA (Catalog number 1734-OW2)
• 100 mA (Catalog number 1734-OX2)
• 110 mA (Catalog number 1734-SSI)
• 160 mA (Catalog number 1734-IJ2)
• 175 mA (Catalog number 1734-IT2I)
• 180 mA (Catalog number 1734-VHSC5, 1734-VHSC24)
• 220 mA (Catalog number 1734-IR2)
