Posital Fraba UCD-IPT00-00512-Y10S-PRM Incremental Encoder
20sinds 20 aug. '25, 16:38
Bieden
Verzenden
Thuisbezorgd via PostNL voor € 6,95
Kenmerken
ConditieNieuw
Handelsnaam fabrikantPosital Fraba GmbH
Postadres fabrikantIm Mediapark 5, Cologne 50670, Germany
E-mailadres fabrikantinfo@fraba.de
Beschrijving

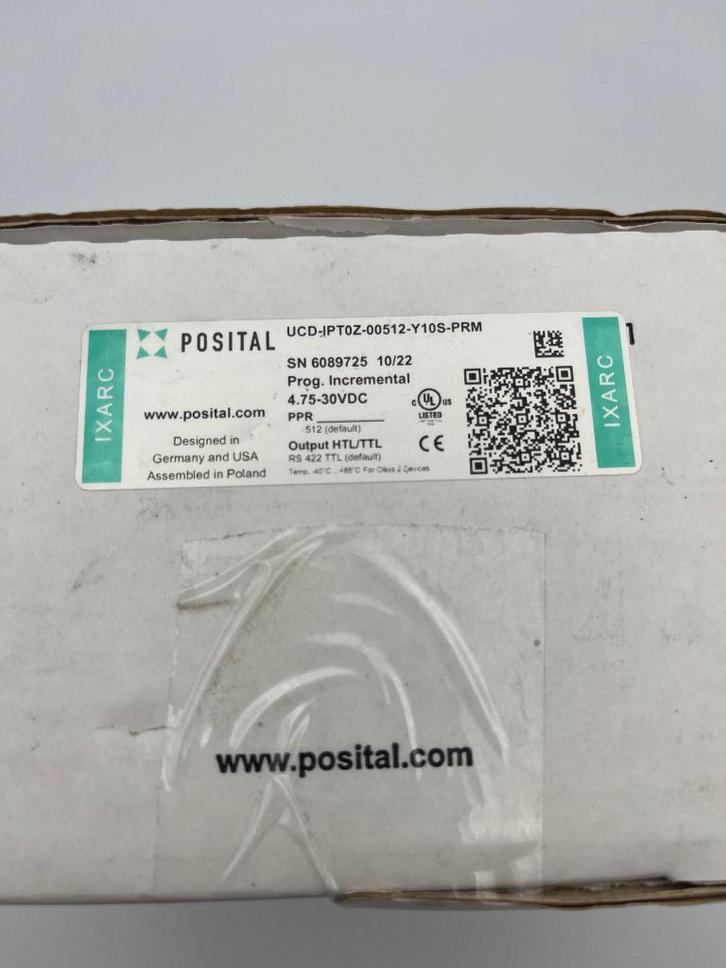

Posital Fraba UCD-IPT00-00512-Y10S-PRM Incremental Encoder
Interface: Programmable Incremental
Programming Functions: PPR (1-16384), Output, Counting Direction
Configuration Tool: UBIFAST Configuration Tool (Version ≥ 1.6.3)
Output Driver: RS 422 (TTL)
Quadrature Phasing: 90° ± 4.5° electrical
Output Voltage High Level Push-Pull (HTL): > 4 V @ 4.75-9 V Supply Voltage, > V-3 V @ 9-30 V Supply Voltage
Output Voltage Low Level Push-Pull (HTL): < 0.5 V
Output Voltage High Level RS422 (TTL): > 4 V
Output Voltage Low Level RS422 (TTL): < 0.5 V
Maximum Frequency Response: 1 MHz
Maximum Switching Current: 50 mA per Channel
Supply Voltage: 4.75 – 30 VDC
Current Consumption: ≤140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @ 24V DC
Power Consumption: ≤ 1.0 W
Start-Up Time: < 250 ms
Min. Load Resistance: 120 Ω
Nieuw in doos.
Factuur is mogelijk, bod is dan ex. BTW.
Zie ook mijn andere advertenties.
ID: 3.070
