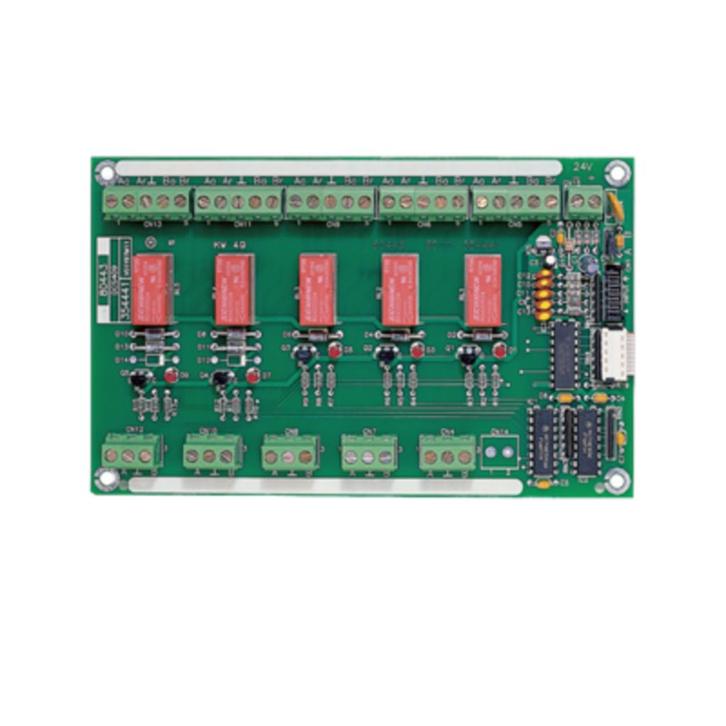

These modules provide relay contact closures for use in switching audio or other control functions. The DCS 409/409R is capable of switching line level audio signals or control outputs. The modules have CE marking as well as UL and CSA recognition for DCS 409.
The module is to be mounted on the rear of a PA-system rack-shelf or inside of a suitable distribution box. It is primarily used for switching 70V loudspeaker lines. The relays can also be used for collective calls, obligatory reception, as E-relays and D-relays, or for general control purposes.
Features
• Five 70V line relays, 2 switching contacts each, binding post per contact
• 5 output binding posts, each with 3 screws and label fields
• 5 relay control-LED’s
• Configuration of the output distributor is performed through opening wire bridges
• 2 connectors for cascading up to 12 modules
• 2 binding posts for the connection of an external supply voltage source
Foto kan afwijken !!
Exclusief accessoires !!
8 stuks beschikbaar
