Beschrijving

Please see full description and all images

This is an nes which I have extensively and carefully upgraded with:

• conversion to NTSC, using original Nintendo chips and clock. G revision chips
• tuned system clock to ensure stability & correct color burst signal for composite image
• installed true RGB mod with the lava RGB kit version 2.0. kit has 8 selectable color 🎨 palettes (select+up for 3 sec)
• enabled expansion audio. The 47k resistor mod with 1k noise reduction. Perfect when combined with n8 or n8 pro
• wired the output connector with RGB and composite support (composite is sent to the sync pin, allowing compatible displays to use either RGB or composite with the same scart cable.
• all new capacitors for power module and main board. High quality Panasonic capacitor for the main cap, and nichicon for the rest, including nichicon gold for the audio capacitor
• new voltage regulator to better handle the upgrades (78s05)
• region lockout chip defeated using the 2 wire method. Disables the region check ton llow for NTSC games to load properly. Is non destructive and easily reversible compared with cutting the leg off the chip.
• controller ports are dezoned. This means any controller or accessory from any region, including most aftermarket controllers will work with this system. It doesn't require pal specific accessories.
• boiled and cleaned the cartridge connector to improve reading. Original carts are reading the first time every time and insert easily
• power led changed to a slow color changing LED that cycles as the console is on

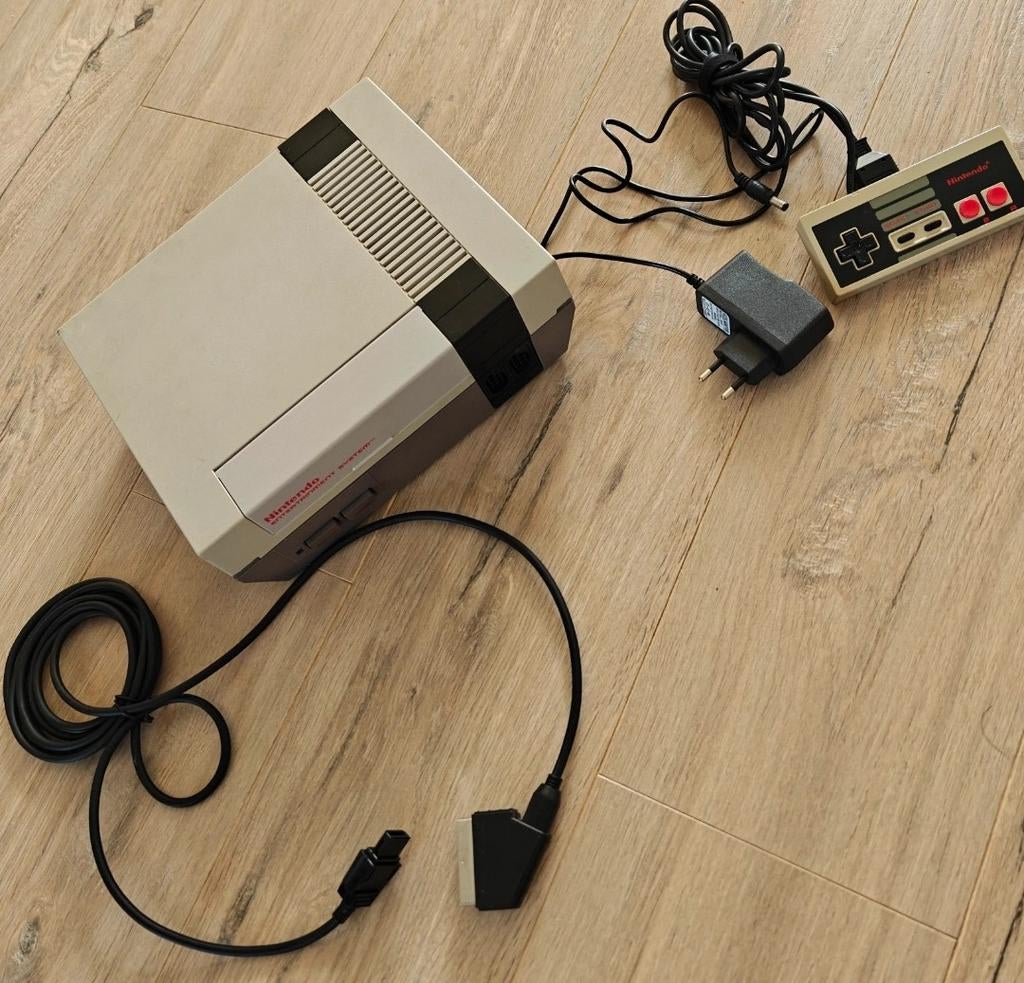

Includes : console, power cable, original controller, and RGB scart cable

Also available: 150 in 1 pocket games multi cart which is all good games without hacks. (has a thin pcb and sometimes needs to be inserted a few times)
...
...
...
...
...
...
...
...
...
...
...
...
