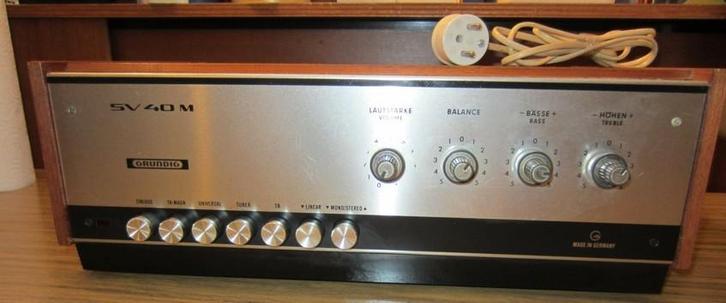

GRUNDIG SV40MSK versterker puur Vintage.
Data General Manufacturer: Grundig Model: SV 40 M - Years of manufacture: 1966 - 1967.
Type: Integrated amplifier Power consumption: 80 watts Color: Silver / Black, real wood veneer Dimensions: (WxHxD) 390 x 150 x 270 mm. Weight: 8 kg Connections Number of inputs: 4 Phono 3mV at 47kOhm equalization according to CCIR standard Tuner 200mV at 1MOhm Universal 200mV at 470kOhm Tape 200mV at 470kOhm, output voltage for tape recording 0.1-2mV per kOhm Number of outputs: 2 one loudspeaker socket per channel according to Din 41529, loudspeakers from 4-16 Ohm can be connected. Technical data Continuous power 5 Ohm: 40 (2x20 Watt) dynamic power 5 Ohm: Distortion factor: less than 0.5%, measured at nominal power in the range between 40 - 15,000Hz with simultaneous modulation of both channels. Intermodulation: less than 0.5% at full scale, measured with a frequency mix of 250 and 8,000Hz at a ratio of 4:1 Attenuation factor: with an internal resistance of 0.25 Ohm, a load resistance at 5 Ohm results in an attenuation factor of 20, which corresponds to 26dB External voltage distance: referred to 50mW output power: - 60 dB, referred to 15 Watt output power: Phono: 60 dB Tuner: 85 dB Frequency response: ± 1 dB between 20 - 20,000 Hz, referenced to 1,000 Hz = 0 dB Power bandwidth: 10 - 50,000 at 1% harmonic distortion Tone control: in zero position Linear Bass: -20 dB cut to + 18 dB boost. Treble: ±18 dB
Succes met Bieden !!
AMJ
Data General Manufacturer: Grundig Model: SV 40 M - Years of manufacture: 1966 - 1967.
Type: Integrated amplifier Power consumption: 80 watts Color: Silver / Black, real wood veneer Dimensions: (WxHxD) 390 x 150 x 270 mm. Weight: 8 kg Connections Number of inputs: 4 Phono 3mV at 47kOhm equalization according to CCIR standard Tuner 200mV at 1MOhm Universal 200mV at 470kOhm Tape 200mV at 470kOhm, output voltage for tape recording 0.1-2mV per kOhm Number of outputs: 2 one loudspeaker socket per channel according to Din 41529, loudspeakers from 4-16 Ohm can be connected. Technical data Continuous power 5 Ohm: 40 (2x20 Watt) dynamic power 5 Ohm: Distortion factor: less than 0.5%, measured at nominal power in the range between 40 - 15,000Hz with simultaneous modulation of both channels. Intermodulation: less than 0.5% at full scale, measured with a frequency mix of 250 and 8,000Hz at a ratio of 4:1 Attenuation factor: with an internal resistance of 0.25 Ohm, a load resistance at 5 Ohm results in an attenuation factor of 20, which corresponds to 26dB External voltage distance: referred to 50mW output power: - 60 dB, referred to 15 Watt output power: Phono: 60 dB Tuner: 85 dB Frequency response: ± 1 dB between 20 - 20,000 Hz, referenced to 1,000 Hz = 0 dB Power bandwidth: 10 - 50,000 at 1% harmonic distortion Tone control: in zero position Linear Bass: -20 dB cut to + 18 dB boost. Treble: ±18 dB
Succes met Bieden !!
AMJ
...
...
...
...
...
...
...
...
...
...
...
...
