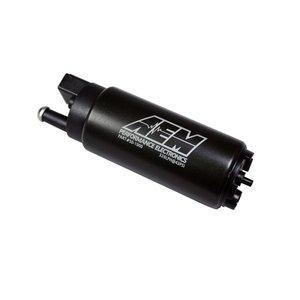

AEM’s High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.

The AEM High Flow In-Tank Fuel Pump (PN 50-1000) flows 320 lph (84 gph) at 43 PSI and is capable of supporting over 1,000 HP at 43 PSI.*

AEM High Flow In-Tank Fuel Pump Features:

• Designed for high output naturally aspirated and forced induction EFI vehicles
• In-Tank design
• Tested to flow 320 lph @ 43 PSI
• 39mm diameter fits most applications
• Offset inlet design eases installation
• Each pump individually tested
• For gasoline vehicles (pump life may be diminished when used with E85 fuel)

What's Included:

• AEM Fuel Pump
• Rubber Sleeve
• End Caps
• Pre Filter
• Hose
• Clamps
• Flying Lead

Technical Specifications:

• Weight: 10.1oz (285grams)
• Outside Diameter: 39mm OD
• External Materials: Black plated steel with laser etching
• Inlet Fitting: 7.7mm ID, 11.0mm OD
• Outlet Fitting: 8 mm hose clamp
• PRV Activation: 90 PSI
• Impeller Design: Single Scroll Hard Anodized Aluminum Turbine

Electrical Specifications:

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5v)
• Current Draw (80 psi): 15 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
