PT1000 temperatuursensor | luchtkanalen

€ 30,40

Verzenden

250sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

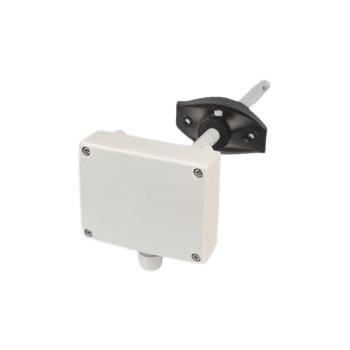

PT1000 temperature sensors come in all shapes and sizes. This DUTSN passive temperature sensor is housed in a housing for air ducts. It also features a handy 3-pole terminal block to which you can easily attach wires up to 1.5 mm²

How does it work?
This temperature sensor measures the ambient temperature via a platinum element (PT100). This sensor element has an electrical resistance of 100 ohms at 0 ° C. It has a positive temperature coefficient. This means that the resistance increases as the ambient temperature increases. Any HVAC device with an input for PT100 'passive temperature sensors' can read the measured temperature.How to connect?
The plantinum temperature sensor element can be connected via a shielded 2-core cable. The cable can be connected via the terminal block with screws. This terminal block is suitable for cables with a maximum cross-section of 1.5 mm². We recommend keeping the cable length limited. The longer the cable length, the greater the influence of the cable resistance on the measurement reading. This sensor does not require a separate power supply.Designed for use in air ducts
The housing fits perfectly in air ducts. With the use of the flexible flange for round air ducts, or without the flange for rectangular air ducts. The DUTSN sensors have an IP54 protection degree against the ingress of dust and moisture.
