CO2 | temperatuur | vochtsensor, 24 VAC-VDC

€ 239,94

100sinds 30 dec. '24, 13:09

Kenmerken

ConditieNieuw

Beschrijving

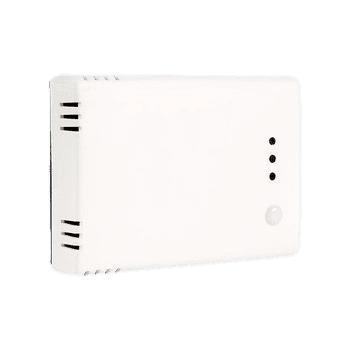

The RSMFG sensor, suitable for 24 VAC or VDC power supply, measures temperature, relative humidity and CO2. It has a separate output for each of these measured values. You can use it as a transmitter to pass on the measured values to a building management system, but if you want to control proportionally, you can of course also use it as a controller. The housing is designed in such a way that it fits perfectly over a 68 mm flush-mounted box. This allows the cabling to be neatly concealed. It also has an integrated light sensor and requires 18 to 34 VDC supply voltage and for the output you can choose between 0 - 10 VDC / 0 - 20 mA / PWM. As always with the new generation of Sentera sensors, this sensor is equipped with Modbus RTU communication.

Indoor air quality based on temperature, humidity and CO2 Controlling
indoor air quality is not easy. You would like the sensor to take everything into account. Well, this sensor from Sentera can register different measurements. And for each of these measurements it has a separate output. You could use one of these outputs to control an EC fan, a control valve or a speed controller for AC fans. But you can also send multiple outputs to your air handling unit or third party external controller. Like all recent room sensors from Sentera, it is equipped with a built-in temperature and relative humidity sensor. On top of that, it has a built-in NDIR CO2 sensor module. Three-wire connection
This sensor is available in different versions depending on the required power supply. This RSMFG version can be connected with three wires. This is very useful as a replacement in existing installations.Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm according to the ambient light .Permanent visual control
Thanks to the integrated and dimmable LEDs, you can see at a glance whether the measured value is acceptable, or whether it is in the warning zone or even in the danger zone . Not every situation is the same, so you determine the values at which the LEDs change colour.Smart constructionThe RSxxx series are suitable for surface mounting. But in a smart way. The mounting is designed in such a way that it fits perfectly over a standard 68 mm flush-mounting box. And the cable passage is at the back, so you can work perfectly with flush-mounted pipes.Adjustable range per measured value
For both temperature, relative humidity and CO2 you can determine the range within which the output signal moves proportionally. This signal can then be used as a signal input for an air handling unit or controller. But if you simply want to control proportionally, it is perfectly possible to directly control an EC motor or valve drive with it.
